Engine
Specifications |
|
351-C
Offset grind crankshaft and cross drilled. Ford #D2AZ-6303-A (bore
4.020 X 3.80" stroke) |
|
Forged
pistons J.E. (Job #48928) |
|
8
Plasma moly piston ring sets. Speed-Pro #R9771-.025" |
|
5
Connecting rod bearings C-77. Michigan #CB-1272-P |
|
5
Main bearings C-77 Half Groove. Michigan #MS-1010-P std. |
|
Dry
sump oil pump with Gilmore belts. |
|
H-beam
connecting rods. Drake #PSY-6. Balanced and magnaflux with titanium
pins. |
|
18
Smith Brothers push rods |
|
|
|
|
Solid
lifter camshaft. Crower #D-3362 |
|
16
solid lifters. TRW #VL-48 |
|
True
roller timing chain. Edelbrock #7821 |
|
High
volume water pump |
|
8
Intake valves single groove titanium. Ferrera #F-1380 |
|
8
Exhaust valves single groove titanium. Ferrera #F-1324 |
|
Racor
Series 64 screen (28 micron) oil filter (pre-oil pump), with
telltale yellow dashlight. Two quart spin-on oil filter between tank
and entrance to engine block, Delco #PF911. All oil lines are
radiused with no tee's or elbows for optimum flow. |
|
|
|
|
Isky
#6205 Intake and valve springs |
|
Crower
intake and exhaust roller rockers 1.8 ratio. #73619 |
|
Crane
intake and exhaust valve retainers |
|
Manley
valve stud kit. #42288 |
|
2

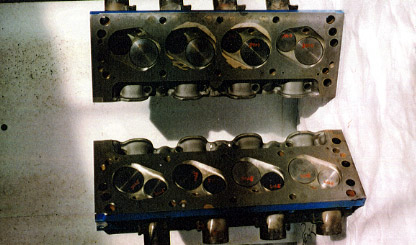

302-C High Port Trans-Am heads. (Very rare) Ford casting #C9ZE-6049-A |
|
Boss
351 Vibration dampener. Part #DIZZ-6316-B |
|
351-C
Cylinder block. Casting #D2AE-CA. 4-bolt main |
|
Timing
cover DOAZ-6B070-A |
|
2
Ford Motorsports valve covers. |
|
HPV-III-B
Ignition. Electromotive crank fired HPV-3 |
|

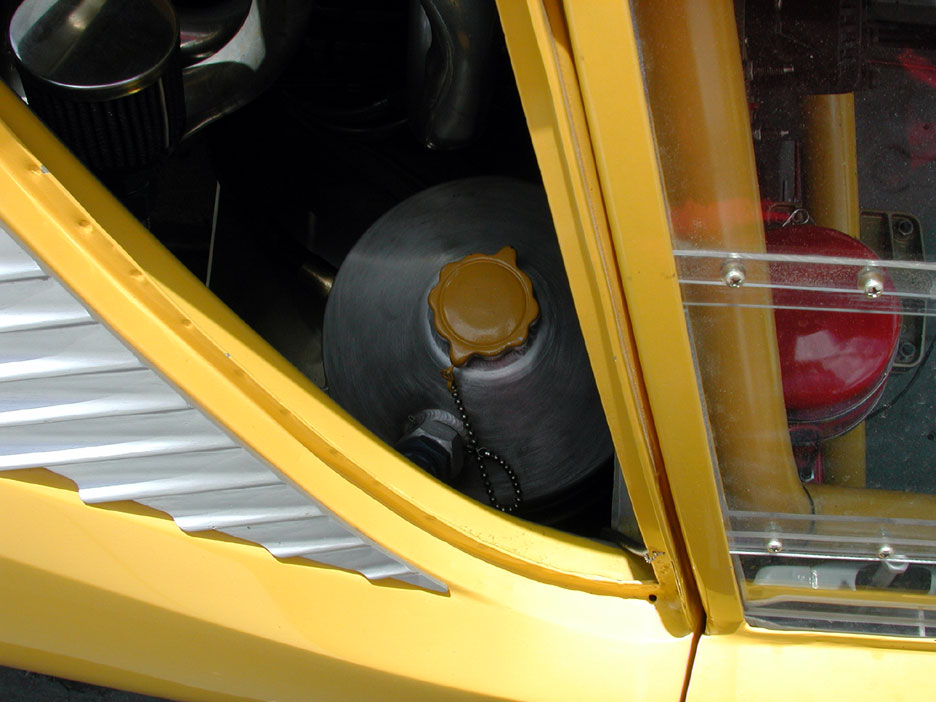

Dry
sump oil pan. 3 each AN-12 (3/4") scavenge pick ups |
|
Pressure
plate heavy duty McLeod #360505 |
|
|
|
|
Wheels
and Brakes |
|

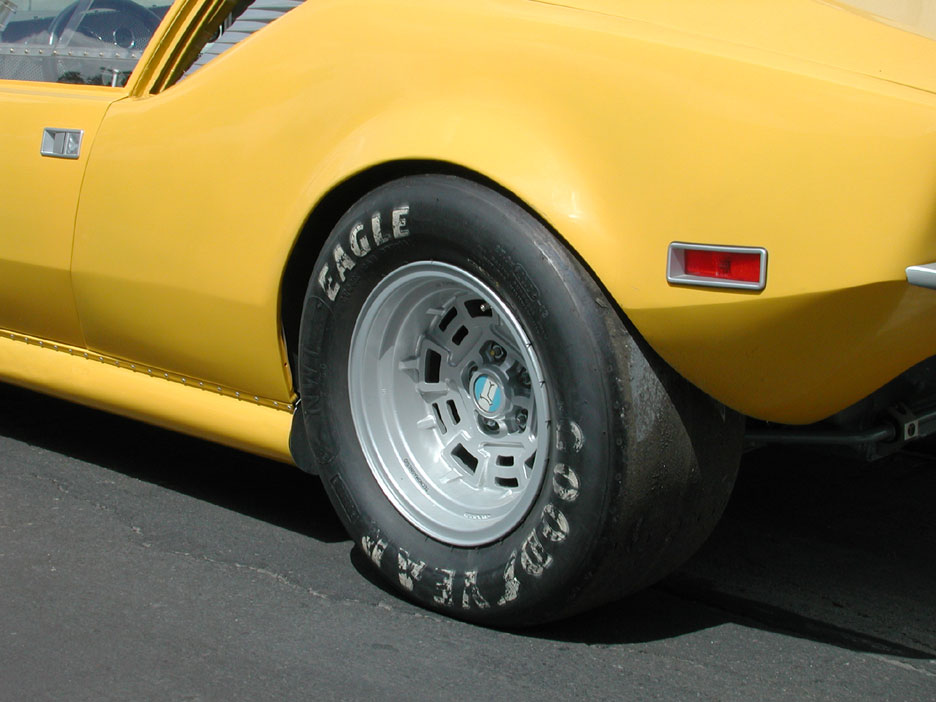

Campagnolo
stock 8 and 10 inch wheels with Goodyear Eagle racing tires |
|
Front
tire size = 23.0 x 9.0 x 15. Rear tire size = 27.0 x 10.0 x 15 |
|
Girling
aluminum master cylinder .75" small reservoir |
|
Dual
balance bar brake pedal system |
|
Rebco
Enterprises Outlaw calipers (special manufacture) with 4 piston,
aluminum body with stainless steel heat shields and Pantera
markings. |
|
Carbon
metallic slotted brake pads. Performance Friction #751-93-4 |
|
Stainless
brake lines with AN fittings. |
|

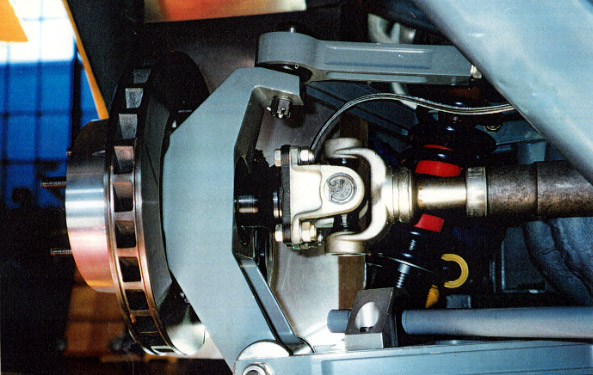

Hats,
billet aluminum, to curved vane rotors 1.25" thick x
11.75" diameter (32 vanes), using NAS 625H6 bolts. Coleman
#603-100. |
|
|
|
|
Steering |
|
DeTomaso
factory steering rack assembly with ends. #50312135-03031A (close
ratio). Manufactured by TRW of Europe. |
|
Quick
release steering hub with personal steering wheel #E38448 |
|
Suspension |
|
Upper
and lower billet aluminum A-arms front and rear with Heim joints
#HMX8G. Rear hub cariers of billet aluminum |
|
Koni
coil over shocks with Hyperco springs |
|
Axles/Shafts |
|
Billet
steel axles, Pantera East #PE0800, with Nachi bearings and CR seals |
|
Powermaster
alternator operates off of curb side drive axle |
|
Clutch/Transmission |
|
ZF
Gearbox 5DS 25/2 final drive 4:22 |
|
Aluminum
fly wheel with steel insert. McLeod #563205 |
|
McLeod
pressure plate with dual friction clutch #3650505 and Midway
#281226CFDF |
|
Fuel
System |
|
48
IDA Weber carburetors. Aluminum cold box with phenolic floor.
Aerospace stainless screen air filter. |
|
Aluminum
fuel tank with roll-over vent, foam filled, approximately 12
gallons. |
|
|
|
|
Exhaust System |
|

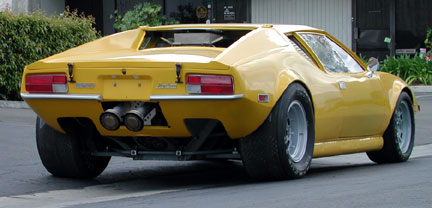

Bundle of snakes to collectors to Super Trapp
mufflers, coated with HPC-1 |
|
Cooling System |
|
Griffin Radiator custom made with radiuses at the
entrance and exit (1 1/2" diameter) |
|
Water tubes are AN-24 stainless steel 1 1/2" x
.016 wall. |
|
|
|
|
Electrical System |
|
Ford permanent magnet starter #SA-793 FZTZ 11002-A |
|
Group 27 battery contained in phenolic box located in
passenger foot area |
|
Single wire alternator. Powermaster #8102 |
|
Brake pedal with tail light option switch |
|
Engine hour service clock |
|
Emergency battery disconnect switch (curb fender) |
|
|
|
|

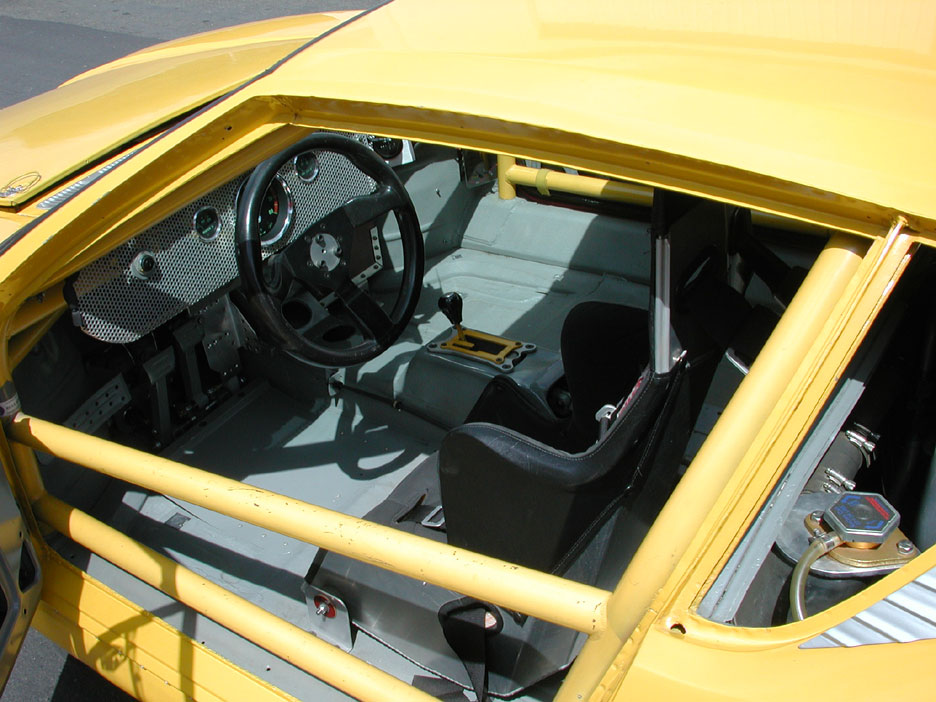

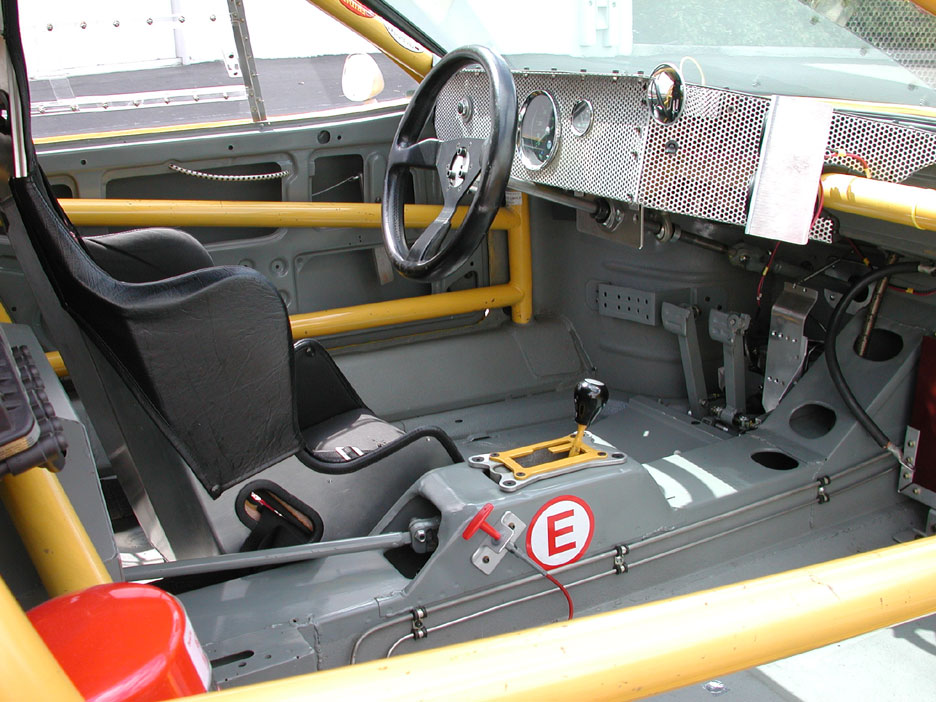

Interior |
|
Simpson 3" 5-way Camlock seat belt #29102BK |
|
Butlerbuilt aluminum race seat #2776/S01 |
|
On board fire suppression system for engine bay and
cockpit. |
|
|
|
|
Body-Shell |
|
Chassis and all parts acid tanked and stripped to
bare metal, detailed of all imperfections and wet sanded with
phosphoric acid. |
|

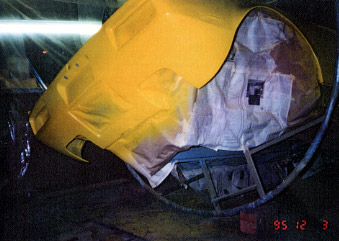

Initial primer was Dupont Variprime 616S and 615.
Second primer Konda DZ3. Final finish Hertz Yellow #DDL80018 Duracryl
(PPG). Gray is Ferguson Ford Gray #7821 |
|
Splash pans, dust panels etc. are manufactured from
6061 T4 aluminum. |
|

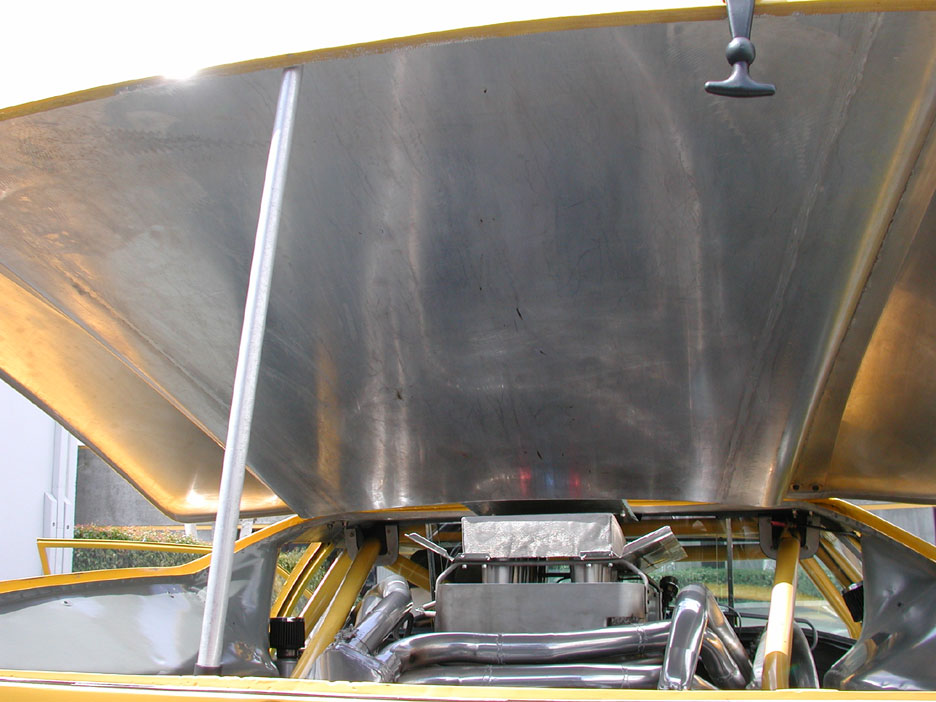

Rear deck and front hood are fabricated of aluminum.
Both unfasten from chassis for easy access. |
|
Safety wire (.032") stainless #304 used on all
strategic bolts. |
|

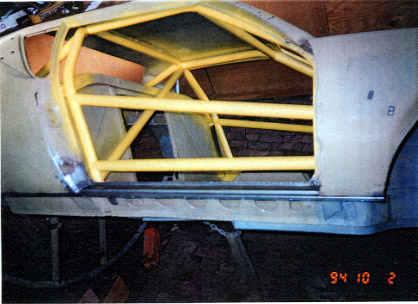

Eight point roll cage manufactured from #4130 Chrom-Molly
1 3/4" O.D. with .120 wall. Step plates and shock towers are
1/2" mild steel. |
|
|
Analysis of this unique car:
We have seen a number of Panteras on the track, in our shop, in
shows and garages that were prepared for racing. Sadly, most
examples that we view are hardly fit to make a trip to the
supermarket much less around a high speed racing circuit. We have
all heard of, or worse yet, viewed Panteras that have been involved
in on-track mishaps before. People can get hurt and the media loves
to show Panteras in distress! The Pantera was not built as a race
car even though it looks like a swoopy GT40. It takes a lot of work,
$$ and engineering to prepare a safe car and one that has a decent
chance of performing. Most Pantera owners are not professional race
car drivers and few have handled a 500 plus horsepower car at speeds
of over 150 mph or more, wheel to wheel racing. This is the
type of car we would like to see owners prepare to race. It gives
the marque a good name and this car will begin packing your trophy
case plus you will have one hell of a lot of fun piloting it! All of
the components selected are top notch and damn expensive. The
owner/driver of this car knows his way around racing and
Panteras. |
|

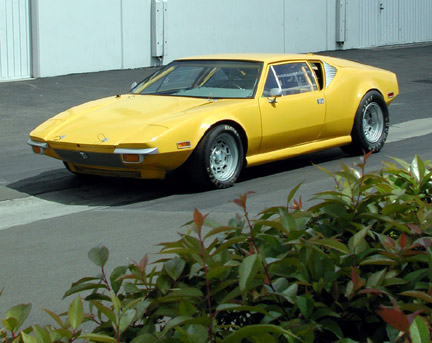

Former Pantera International Cover Car
|
