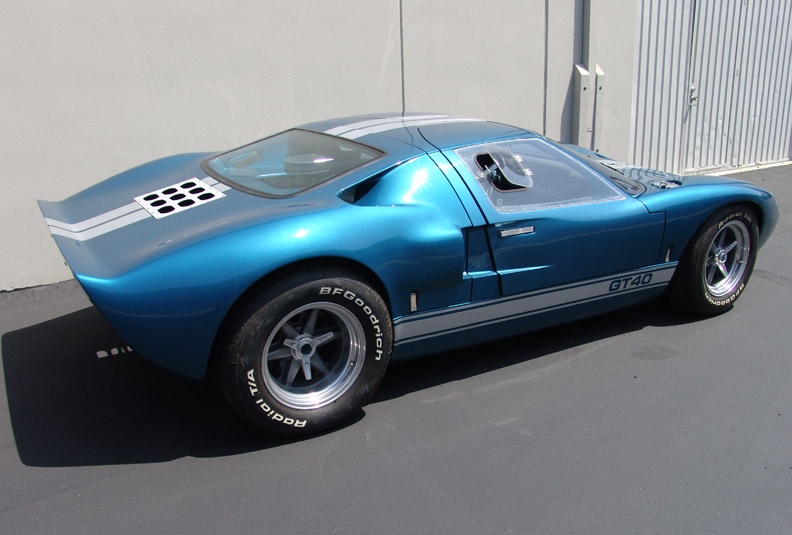

CAV GT
please click on thumb nail images to view larger photographs

$99,995.00

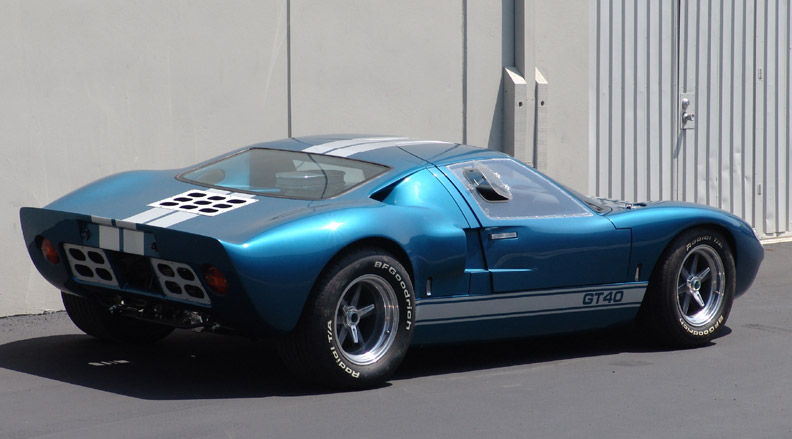

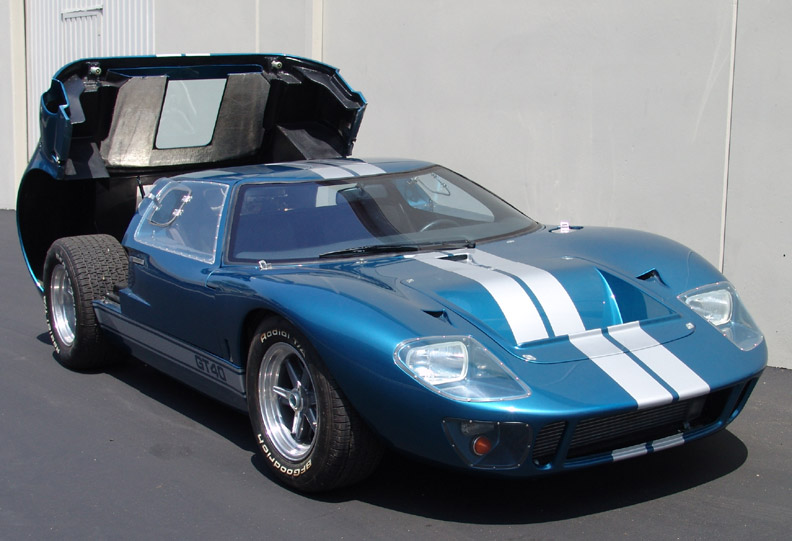

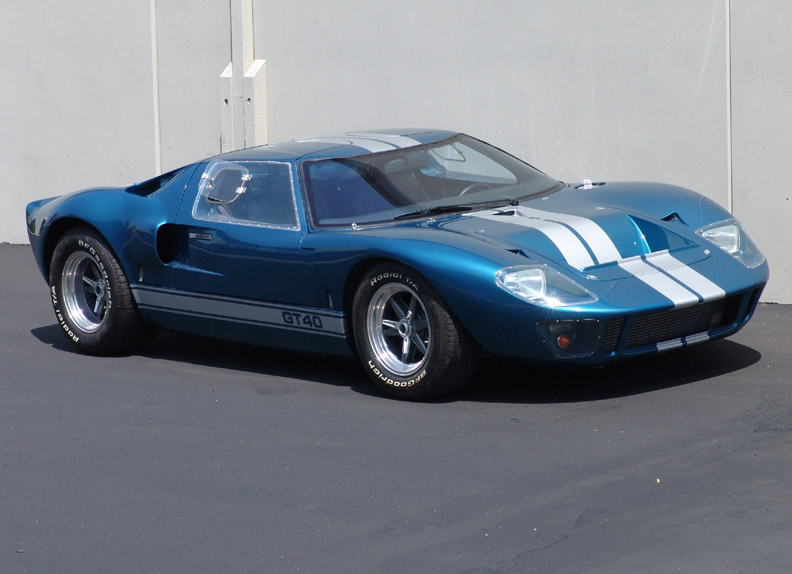

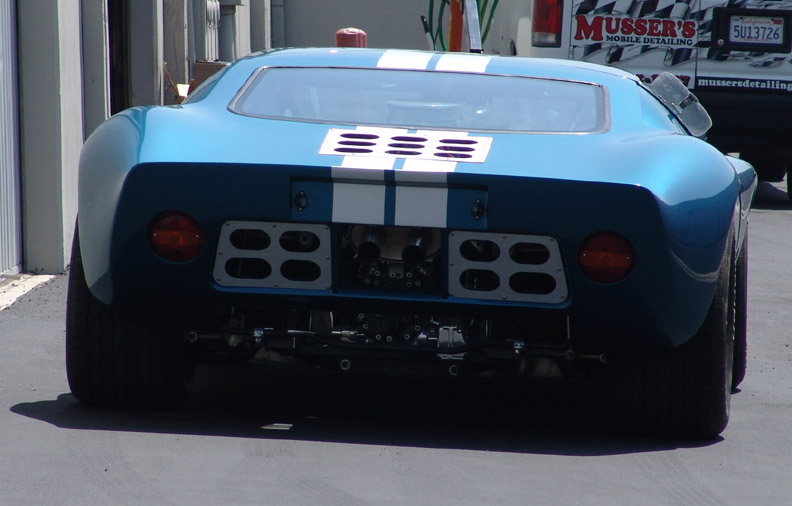

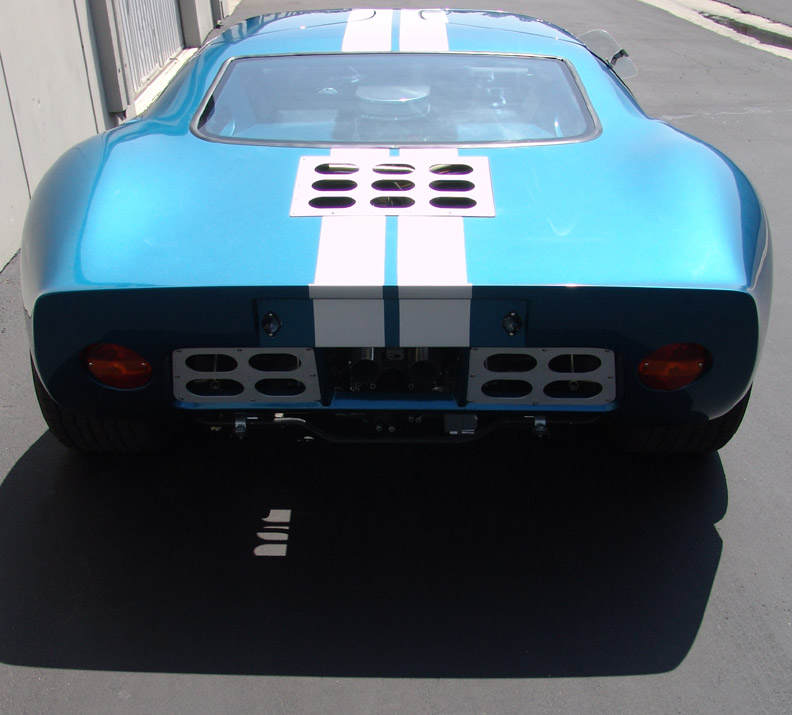

On consignment is this completed CAV-GT offered for sale.
Break-in miles on the car and the powertrain.

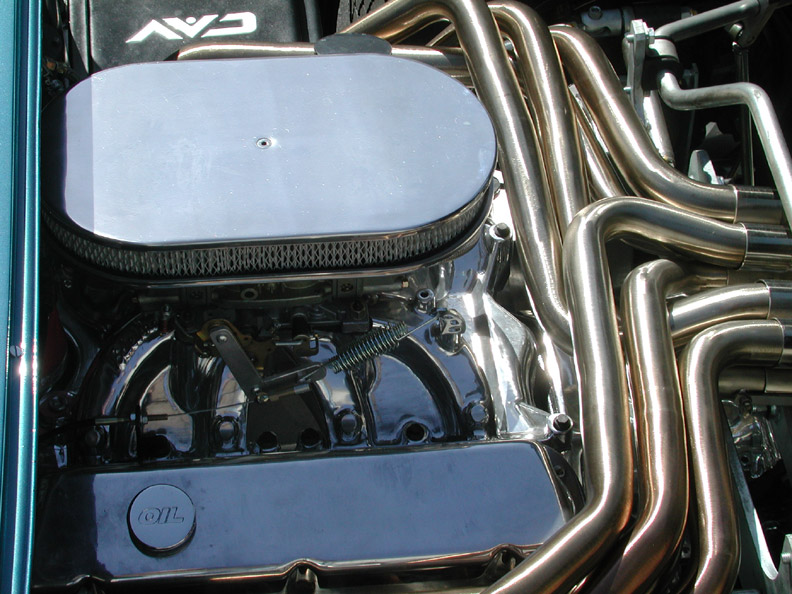

Please do not confuse this car with other replicars that are powered by small block 302's with Audi transmissions. This car is powered by our own,  proven 427 cubic inch Windsor based engine which develops 540 horsepower.
The ZF is polished and freshly rebuilt. Clutch and pressure plate are new.
The bellhousing is a proprietary item designed and built by PI Motorsports, Inc. Ensuring a proper fit, the ZF transmission mates up properly with the engine.
Blindingly fast and gorgeous to look at.
CAV GT chassis number 43
$99,995.00
Sales price does not include DMV fees, documentary fees or sales taxes. Such fees will be added to the final sales price. Out of state residents who do not take delivery in California may not be subject to these charges.
This car is sold, "AS IS-WHERE IS". There is no warranty express or implied.
Disclaimer and purchasing information - please review prior to making an offer
If you are an out of state buyer, please verify the emissions requirements of your state prior to making an offer.
































































CHASSIS
Semi monocoque, welded high grade stainless steel, integral roll over and side impact protection.
SUSPENSION

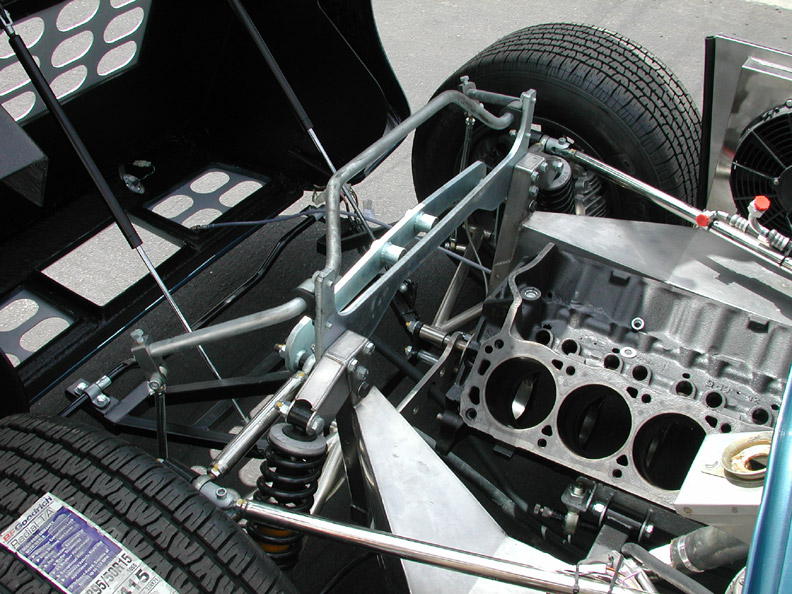

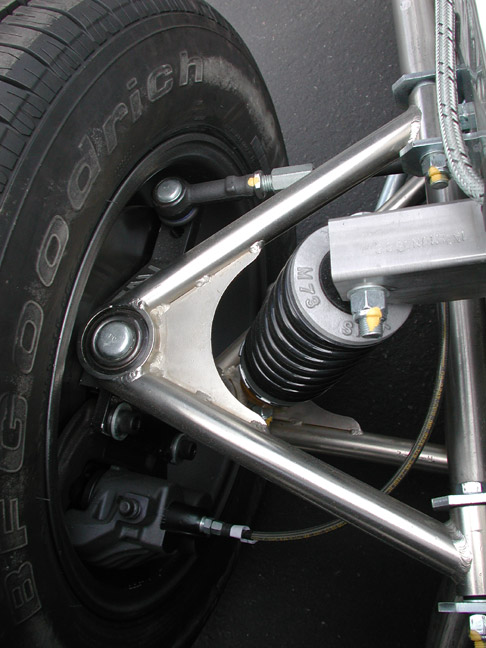

Independent unequal length wishbones offset A frame, anti roll bar, billet aluminum upright (front).

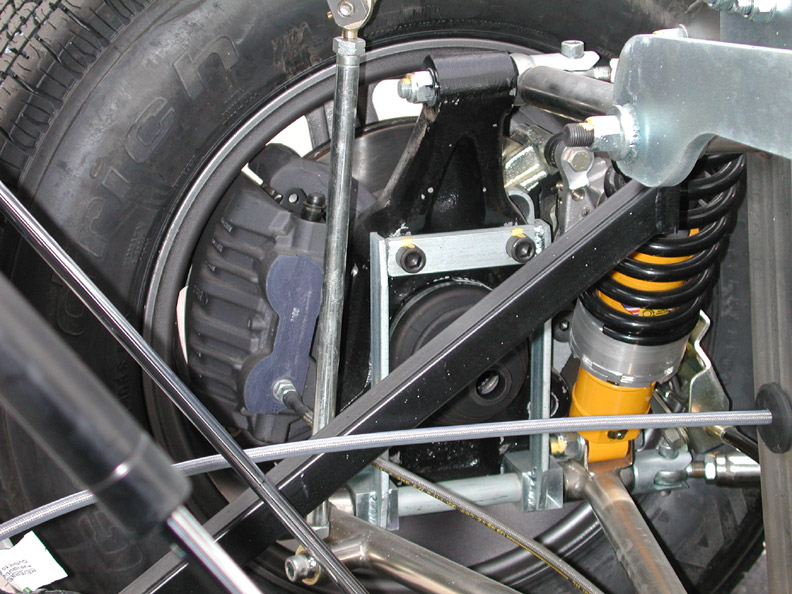

Independent double trailing links, lower inverted A frame and upper transverse link wishbones, anti-roll bar, aluminum upright (rear).
Built in Anti dive, and anti squat, near zero bump steer.
SPRINGS/DAMPERS

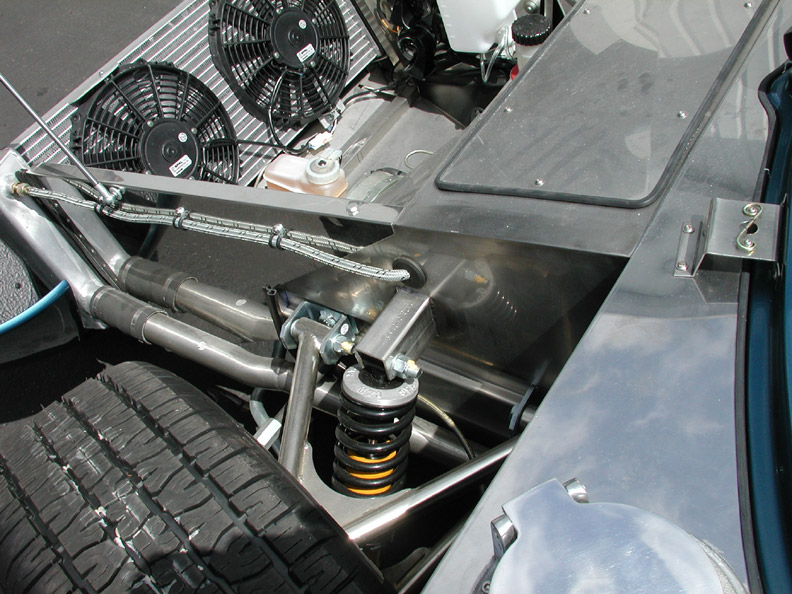

Competition coil over type gas dampers shocks with adjustable damping rate and variable spring height.

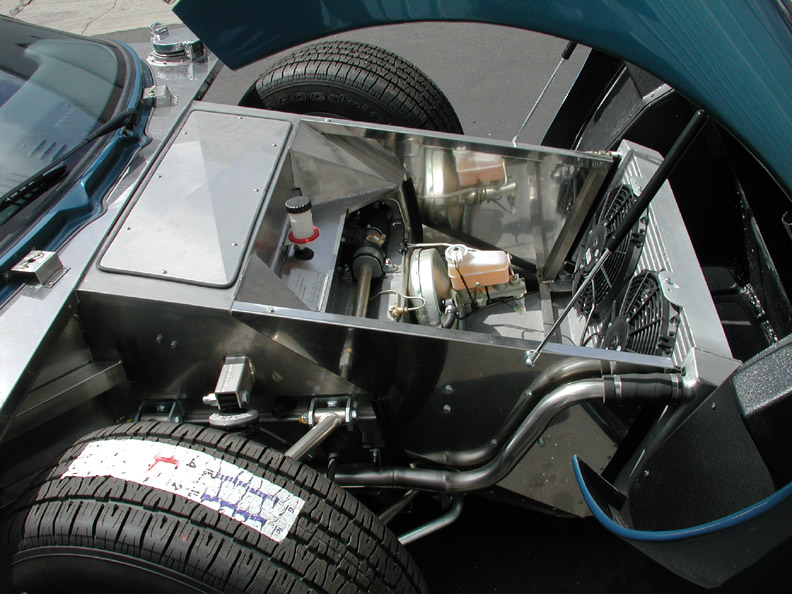

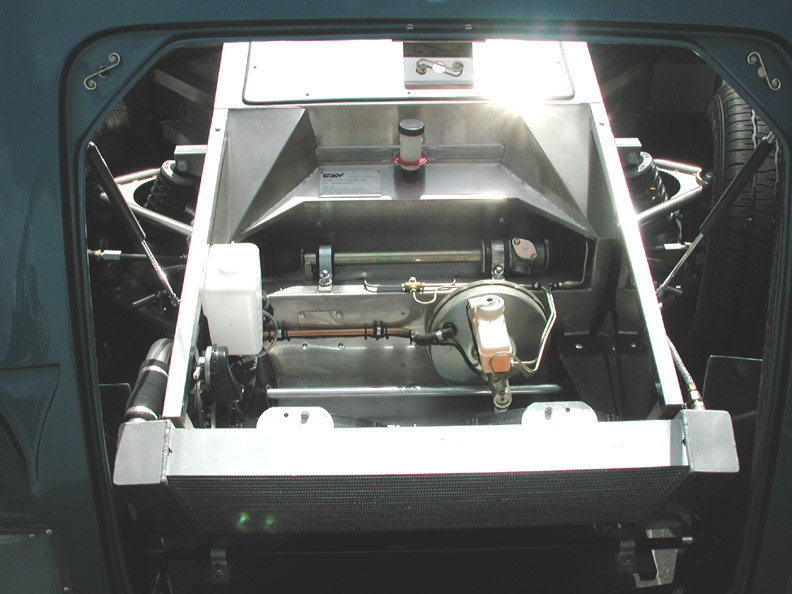

BRAKES --Dual circuit, front rear split with servo assistance, tandem master cylinder, Proportioning valve.
11.375” ventilated discs (front).
11.375" ventilated discs with separate handbrake caliper (rear).

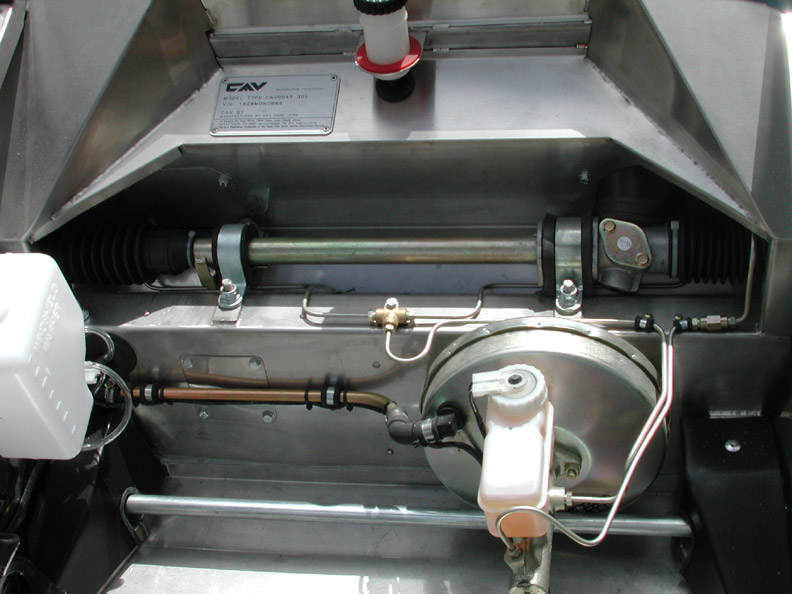

STEERING --Rack and Pinion. 2.9 turns from lock to lock overall ratio 14:1

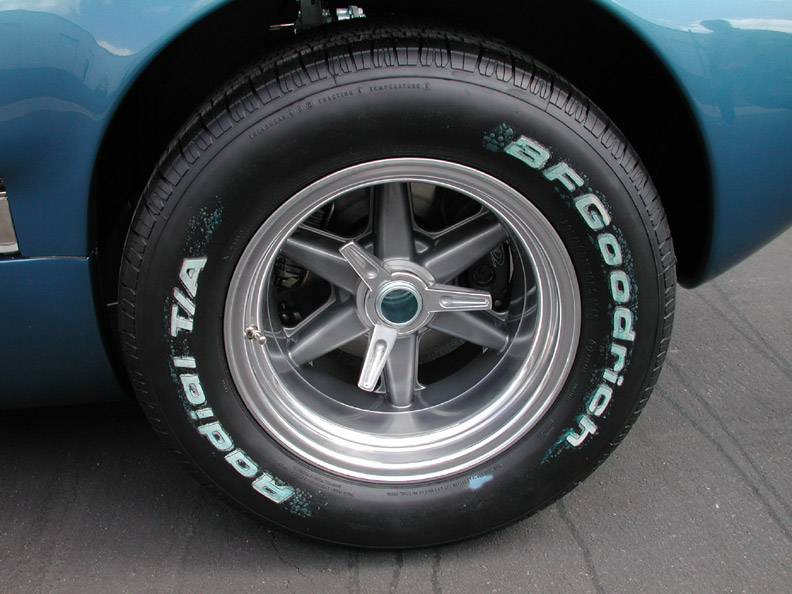

WHEELS--Halibrand style alloy pin drive replica with center knock-off hub, 7.5” x 15 front, 9.5” x 15” rear.
From March 2002 BRM alloy pin drive replica with center knock off 8" x 15" front 10" x 15" rear.
FUEL TANKS (2)--10 gallon fuel safety cells sill mounted. Original style filler caps, total capacity 20 US Gallons. Individual electric pumps and filters with dash change over switch.

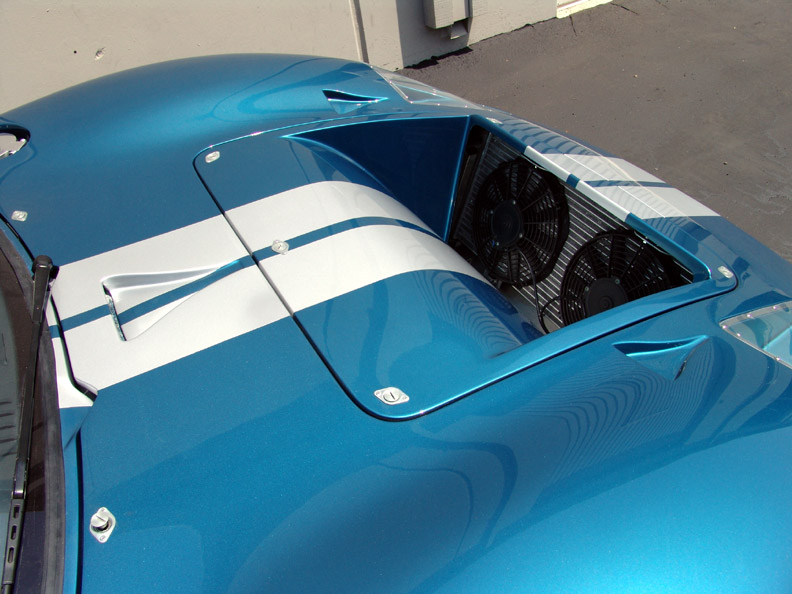

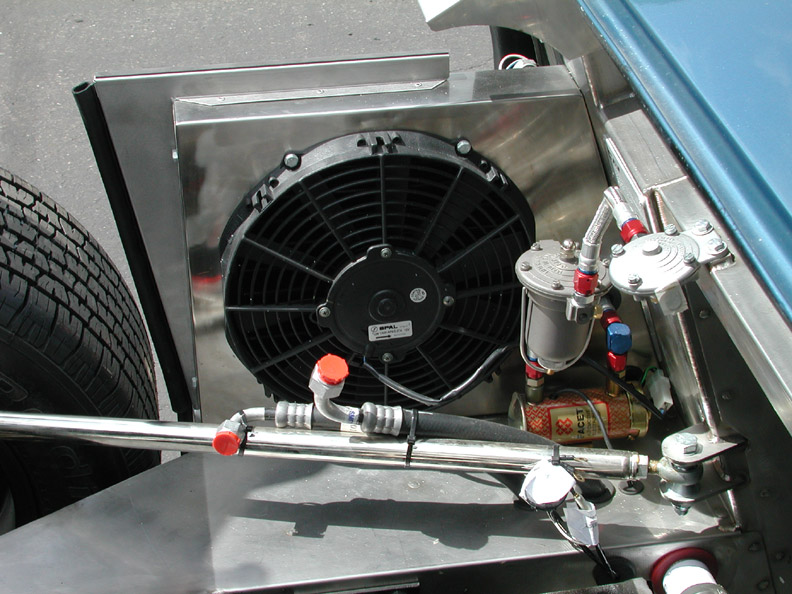

COOLING --High efficiency, six core front mounted aluminum radiator with twin auxiliary electric fans., Thermostatically controlled with manual override .

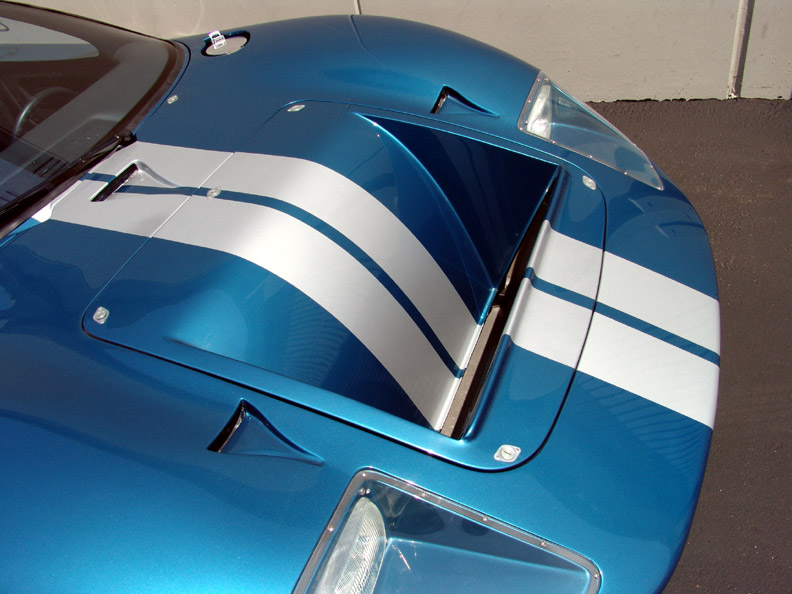

BODY

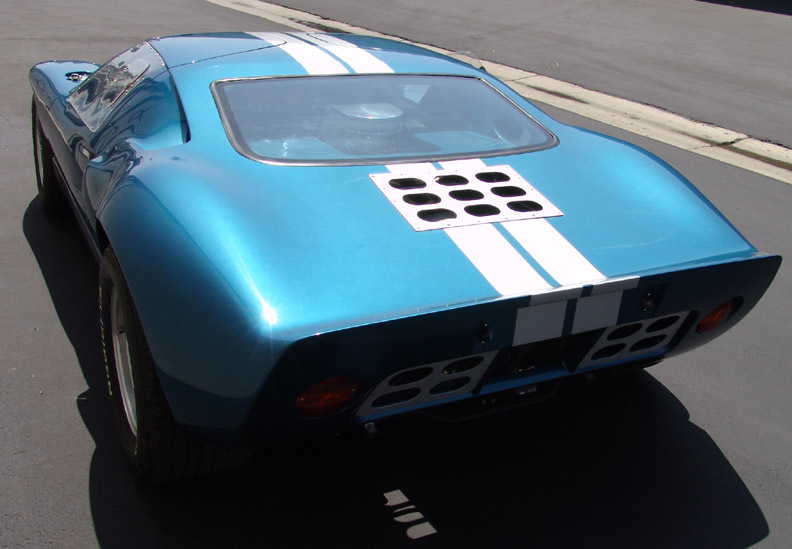

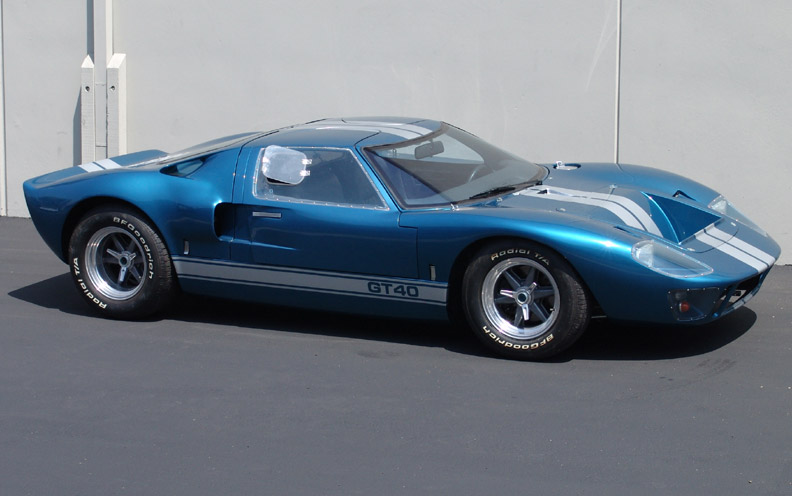

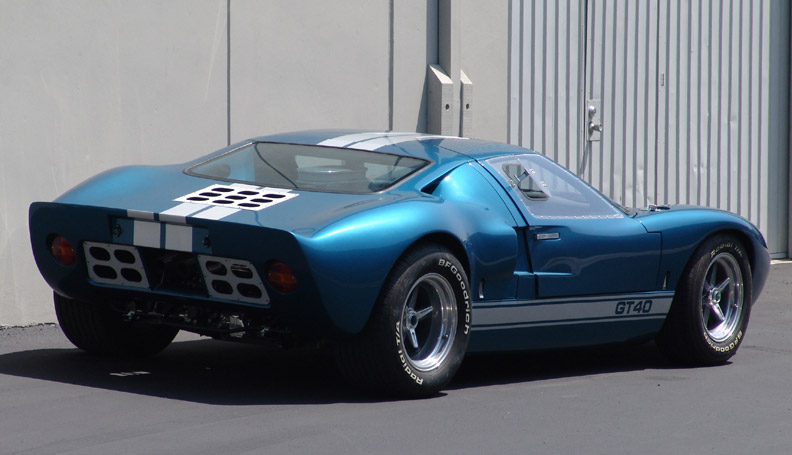

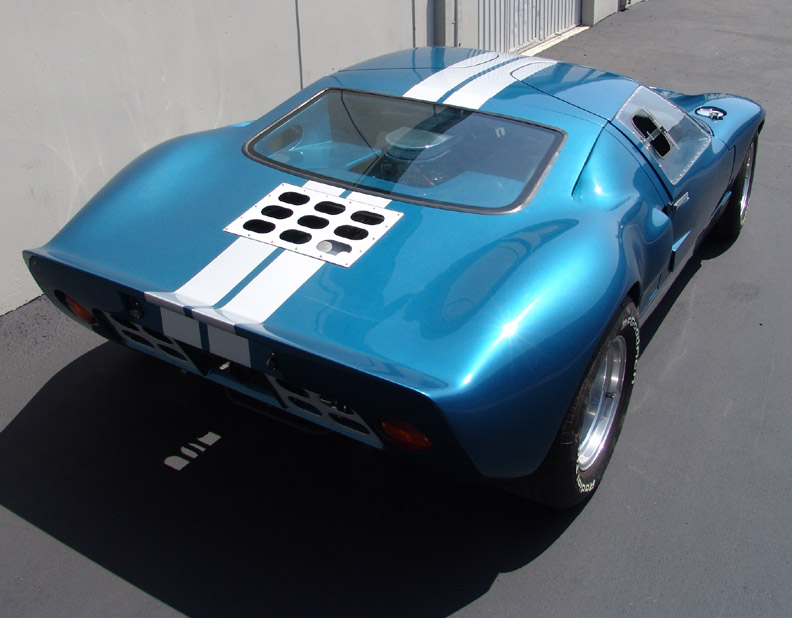

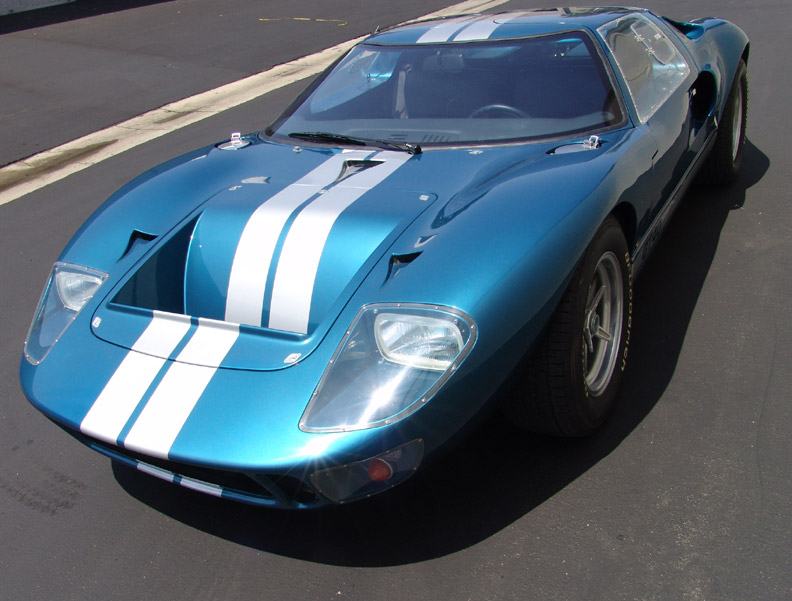

Style: GT40 Mk.1 Length: 164.5”.
Width: 70” Height: 40.5.
Wheelbase: 95” Dry Weight: 2,150 lbs.
Ground Clearance: 5”.
Sprint technology Carbon Fibre /Kevlar composite .
INTERIOR
Cockpit Molded finish inside body.
Carpet Wool automotive quality.

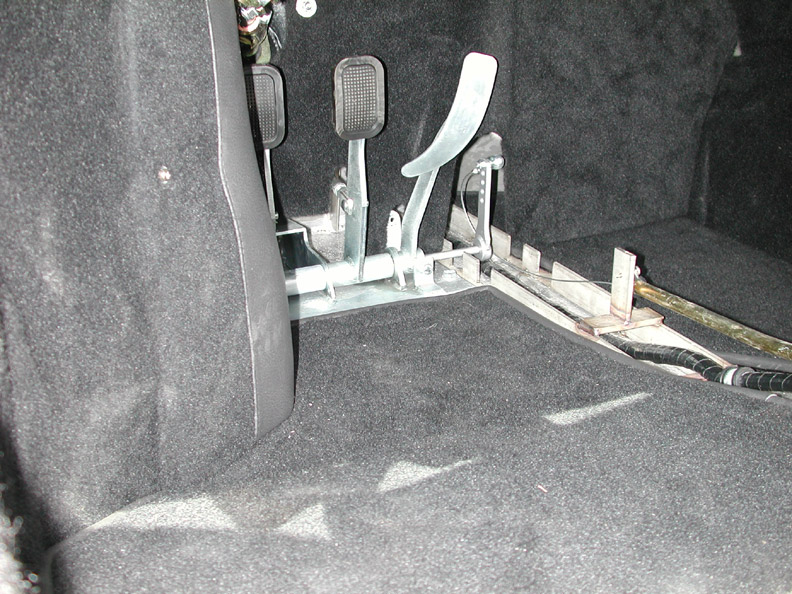

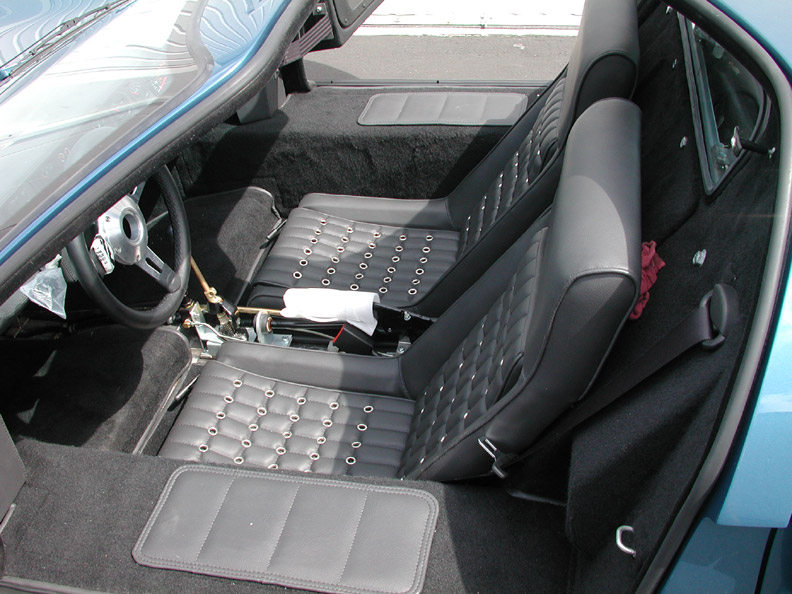

Seats Adjustable fore/aft, Vinyltex with brass grommets, pedal box adjustable for tall drivers.
ELECTRICAL

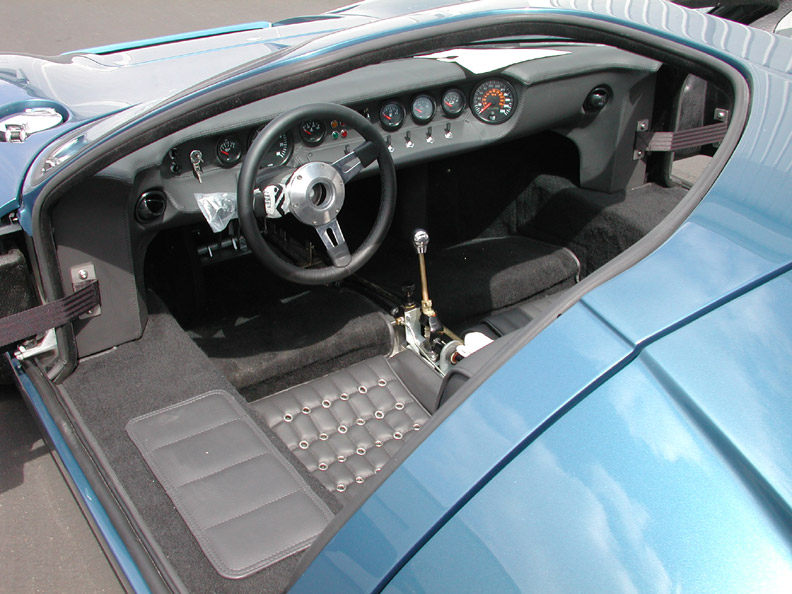

Original style gauges (VDO) and switches (Lucas) Smiths or Autometer available. All circuits fused and relayed, rear mounted battery.
Cibie headlamps, all other lights original pattern.
Battery master isolator switch.
DRIVE TRAIN
PI Motorsports, Inc. 427 "Crate" Motor. Offering over 540 horsepower, this engine will supply the gut-wrenching performance you would expect from an automobile of this beauty and heritage.
EXHAUST

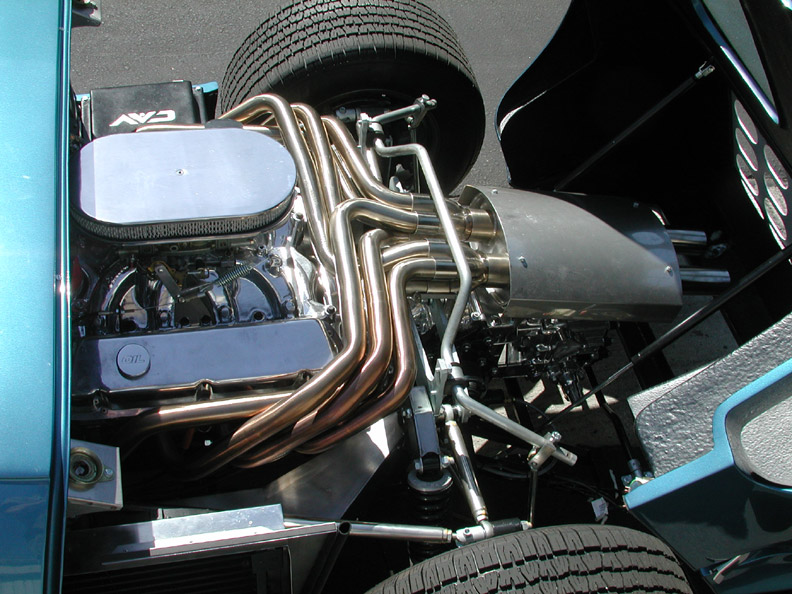

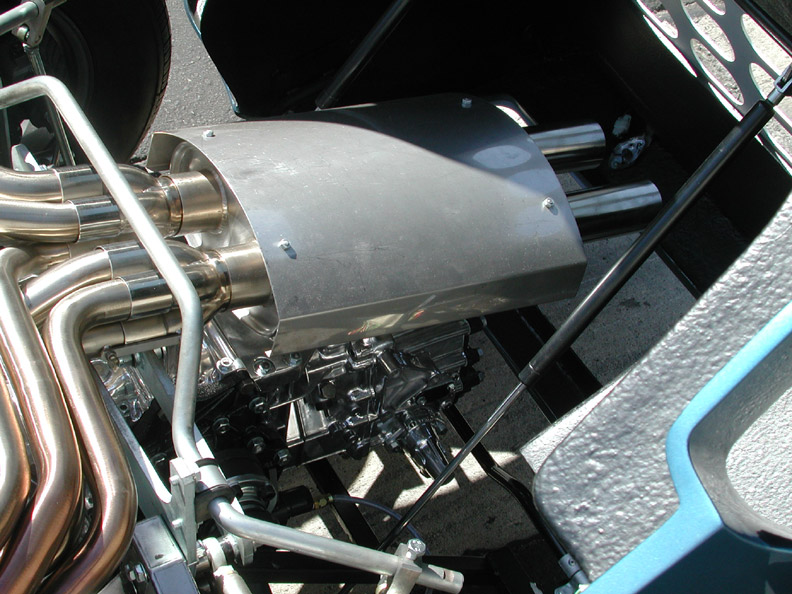

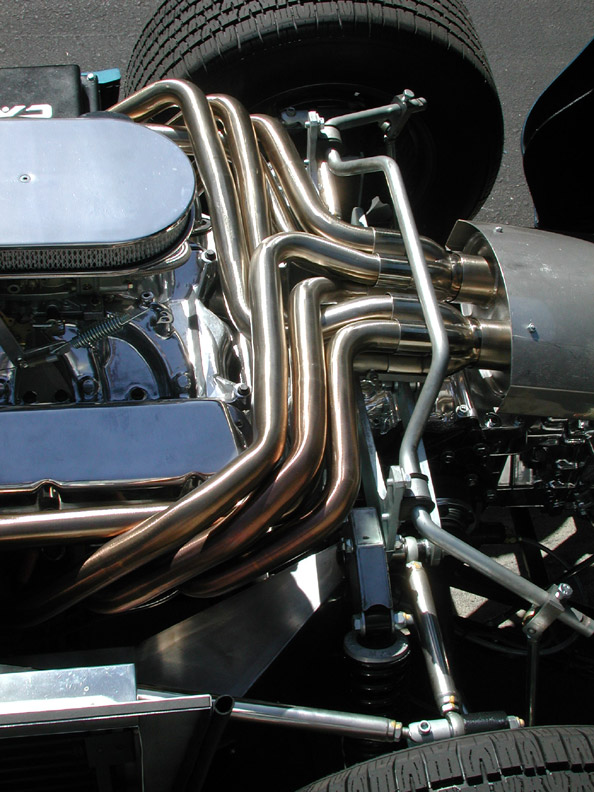

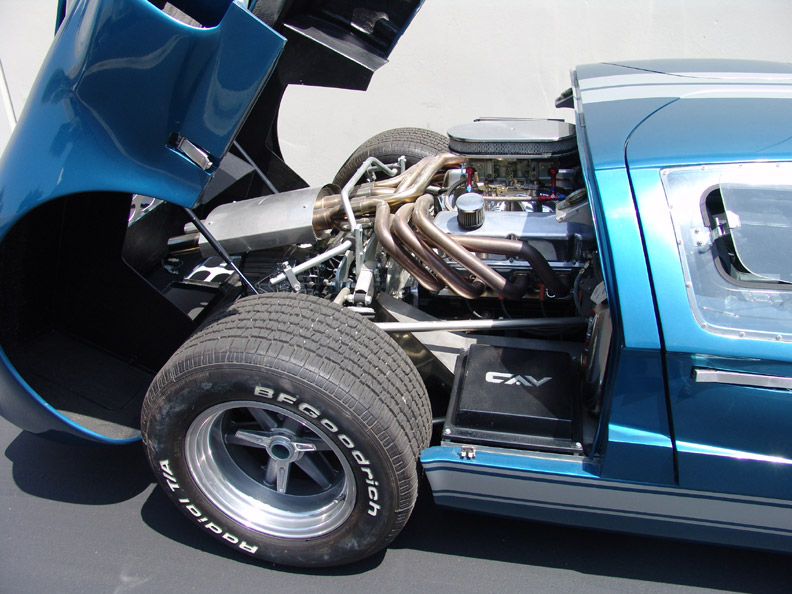

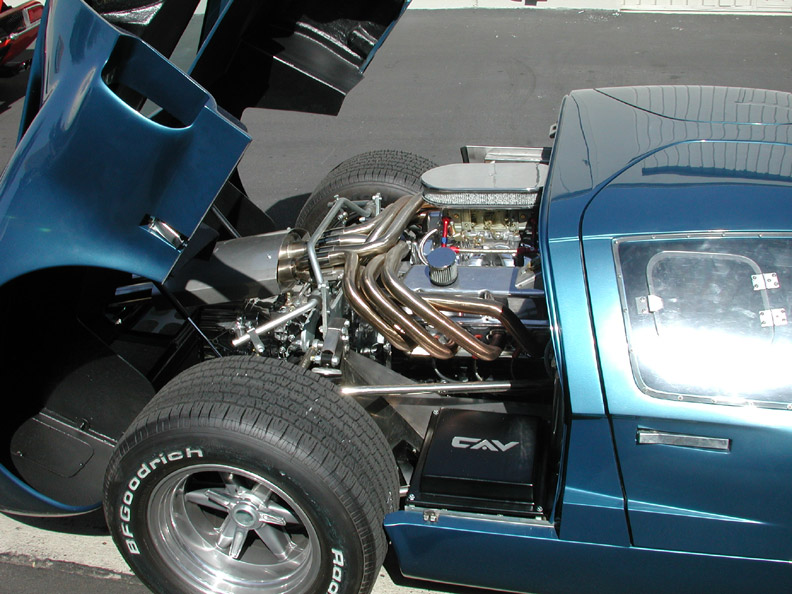

Stainless steel original pattern “Bundle of Snakes” eight branch header system with two collectors, muffler and stainless steel heat shield
IGNITION
Electronic breaker-less is recommended
TRANSAXLE

ZF 5DS25 5 speed


Ratios 1st 2.23
2nd 1.47
3rd 1.04
4th 0.846
5th 0.705
Final drive 4.22


Alternative gear and final drive ratios are available for the ZF transaxle.
CLUTCH Dual clutch disc
DRIVE SHAFTS Race specification solid
STANDARD COLORS - PPG base coat and clear
1964 Guardsmans Blue
OPTIONS

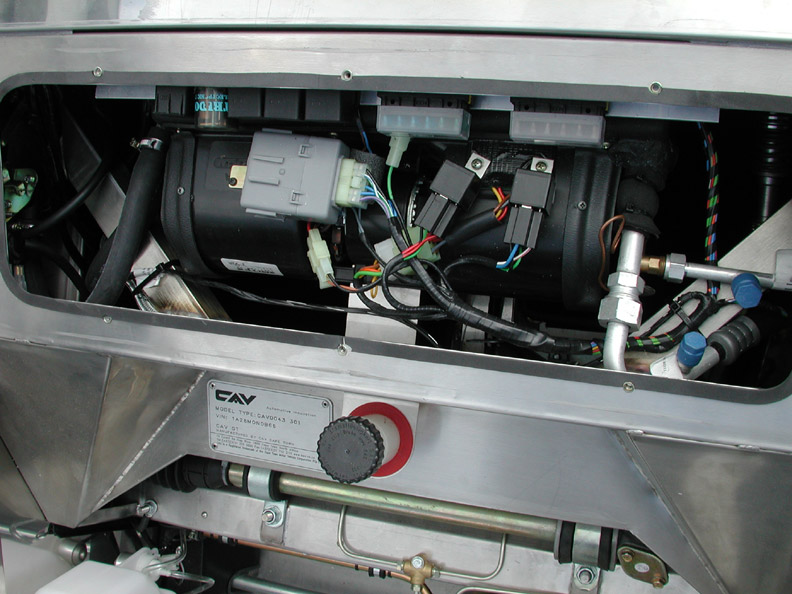

Factory fitted fully concealed air conditioner and heater
17 inch wheels
