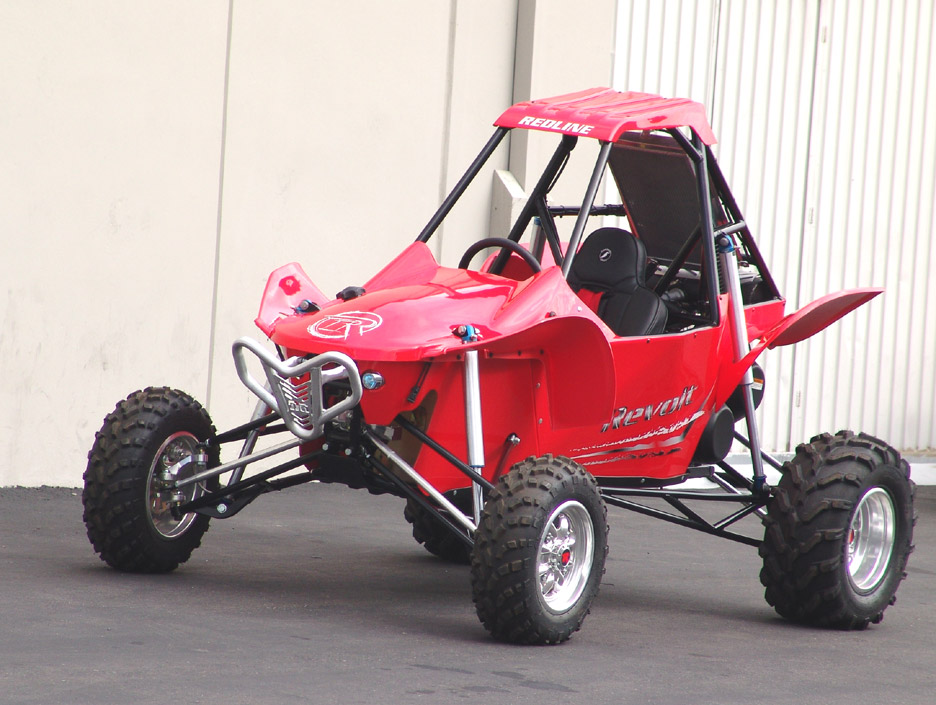

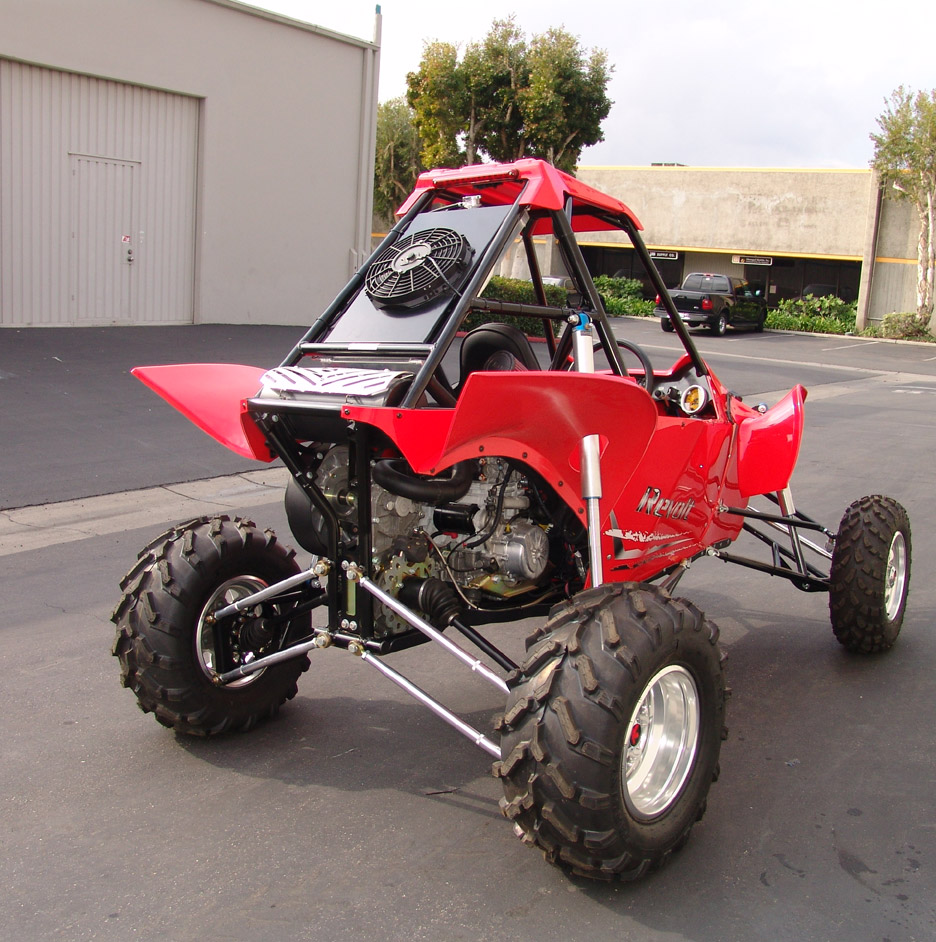

Redline Revolt - The best value and performance for the money
from PI Motorsports, Inc. 714-744-1398




  • Model Name: Revolt

  • Model Number: 1RLSR175FA

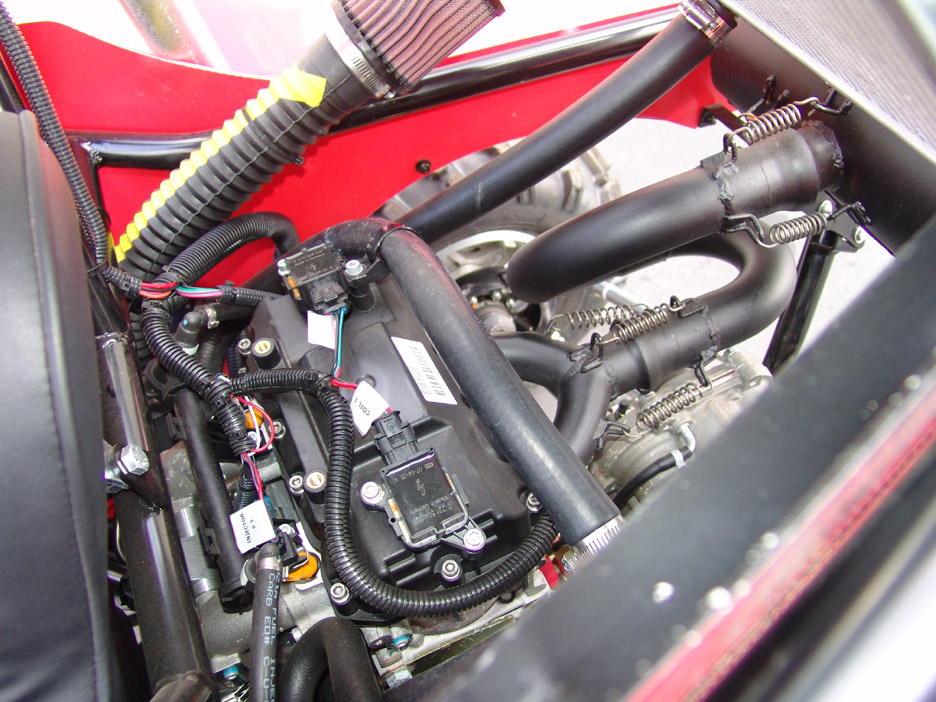

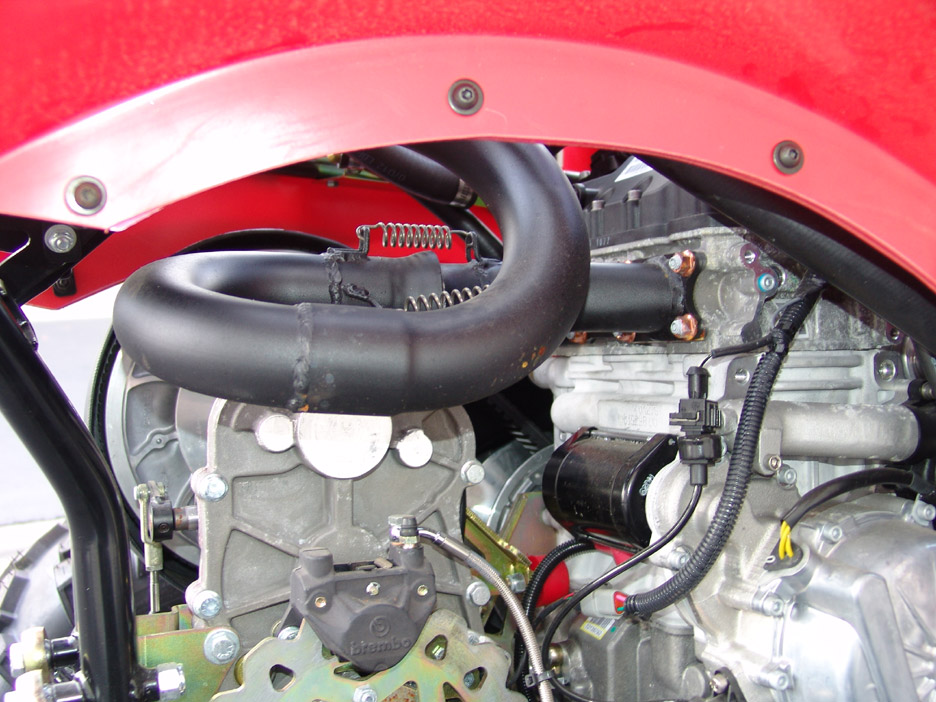

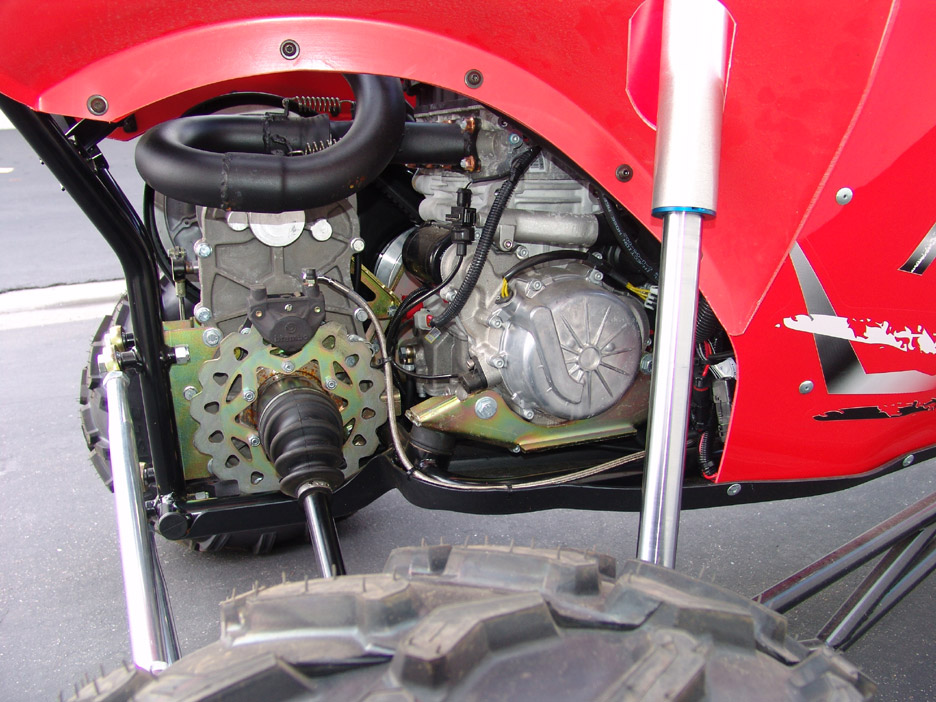

  • Engine: Weber Motors 749cc, liquid-cooled, 4-cycle, parallel twin cylinder, SOHC, 72hp

  • CARB certified and Green Stickered.

  • Suspension Travel: 17" of true travel on the front and 16.5" of true travel on the rear.

  • Estimated top speed: 75 MPH

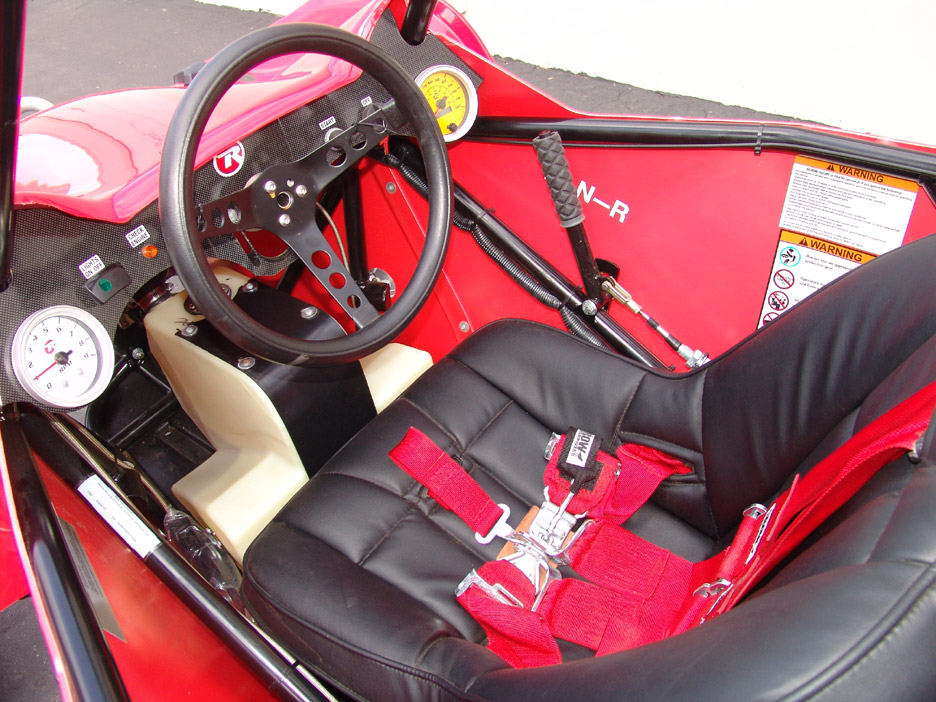

  • Chassis: Powder coated tubular space frame w/ 5-point harness

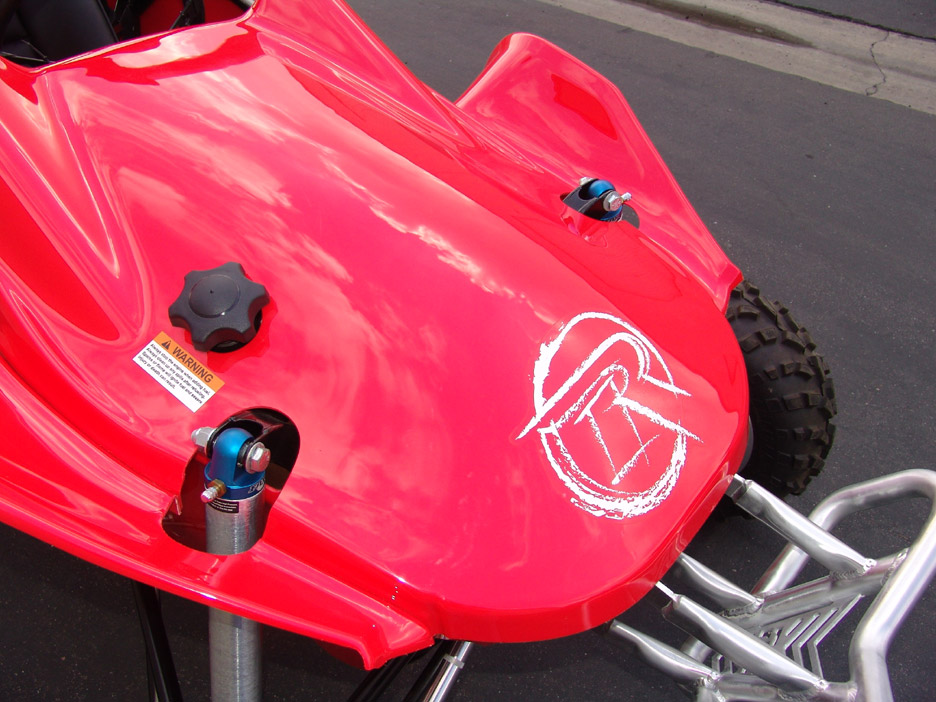

  • Body: Molded TPO body panels

  • Lubrication: Dry sump Oil Capacity 2.50 qts /

  • 2.37 ltr Fueling Port Injected EFI – Walbro EMS

  • Fuel Capacity: 5.5 gal / 20.8 ltr

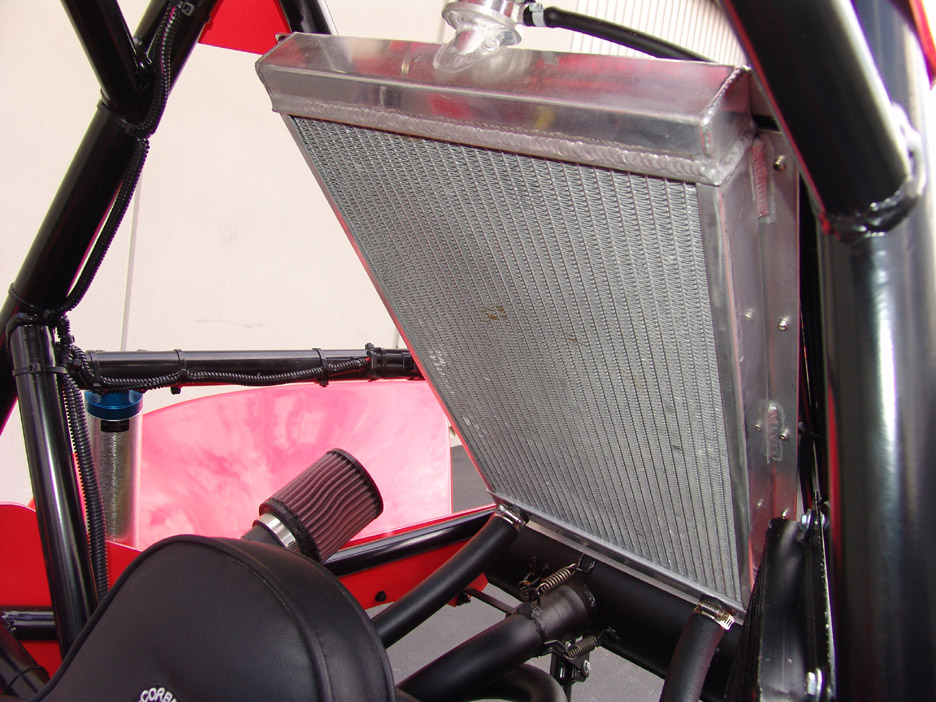

  • Coolant Capacity:1.5 gal / 5.7 ltr

  • Alternator: 350 Watt

  • Starting/Battery: Electric/12V – 30AH

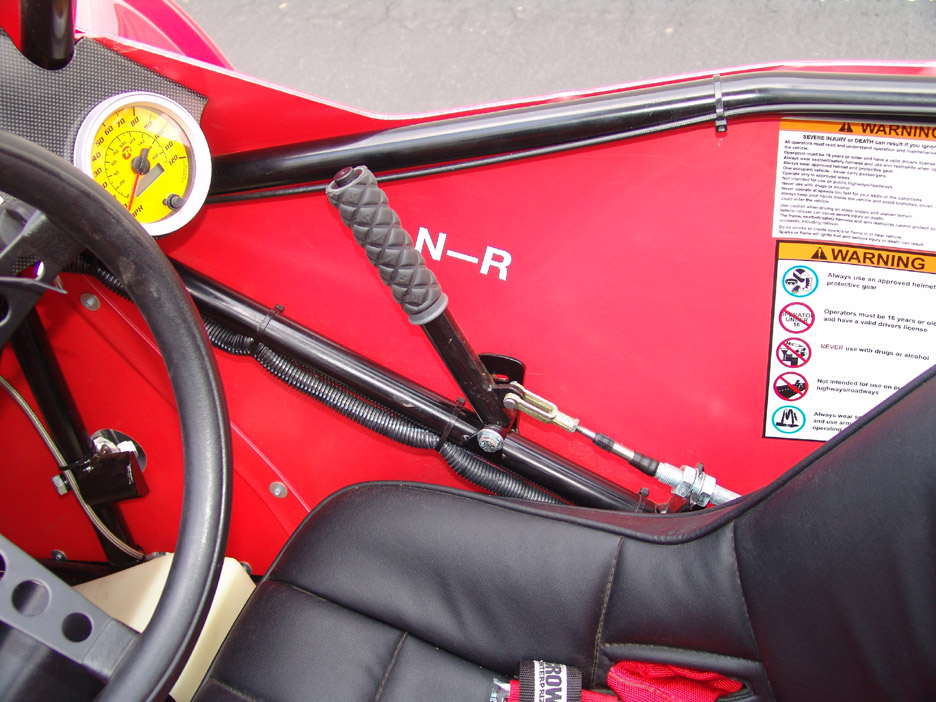

  • Transmission: Continuously Variable Transmission (CVT - Automatic) w/ Redline Proprietary F/N/R gearbox Drive Two-wheel shaft Front

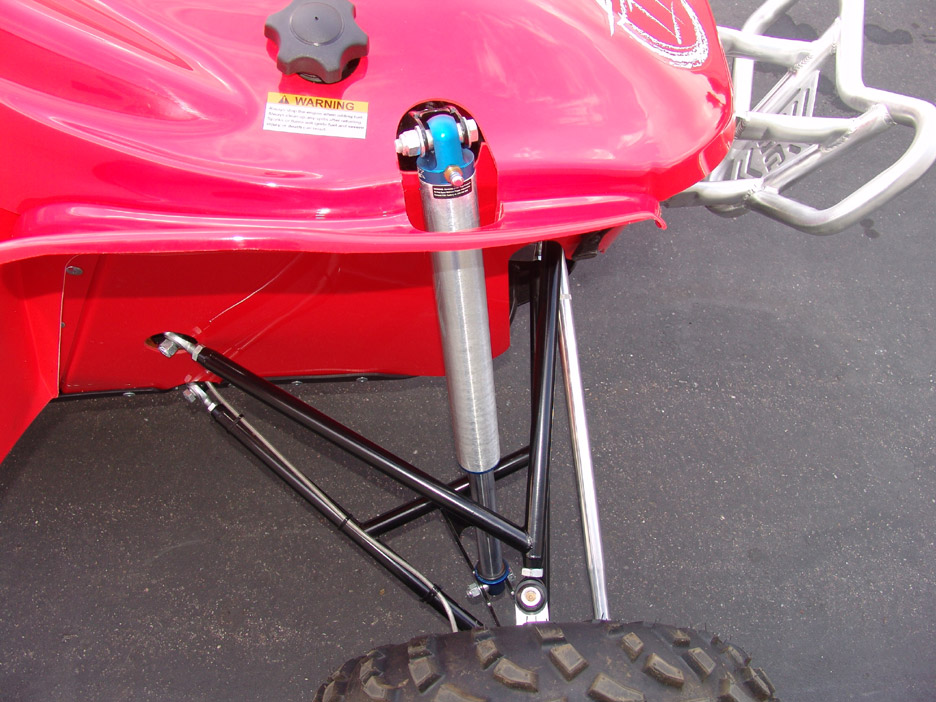

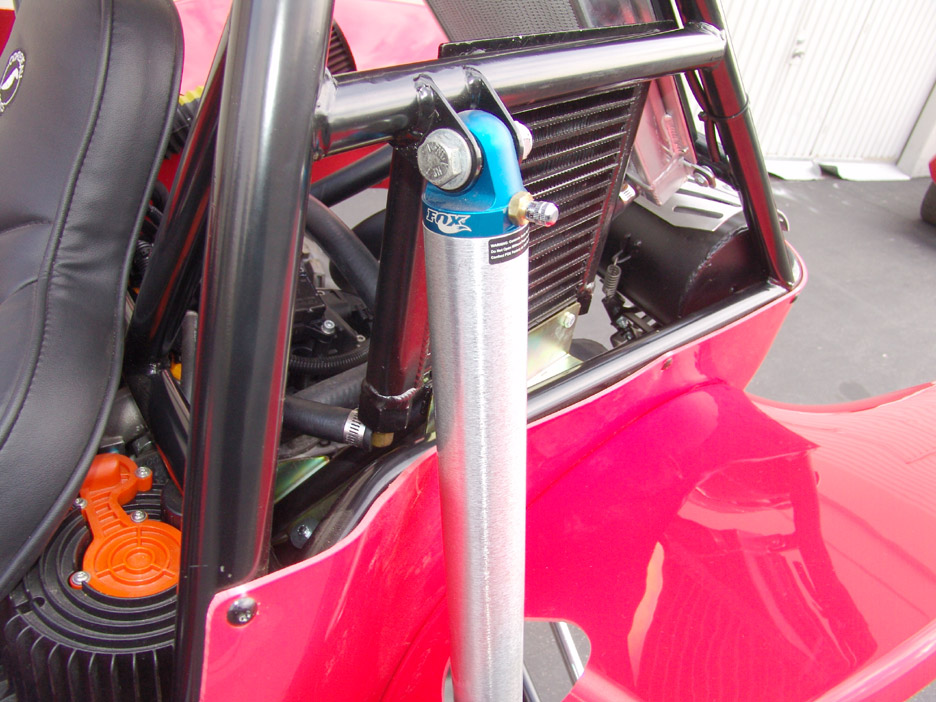

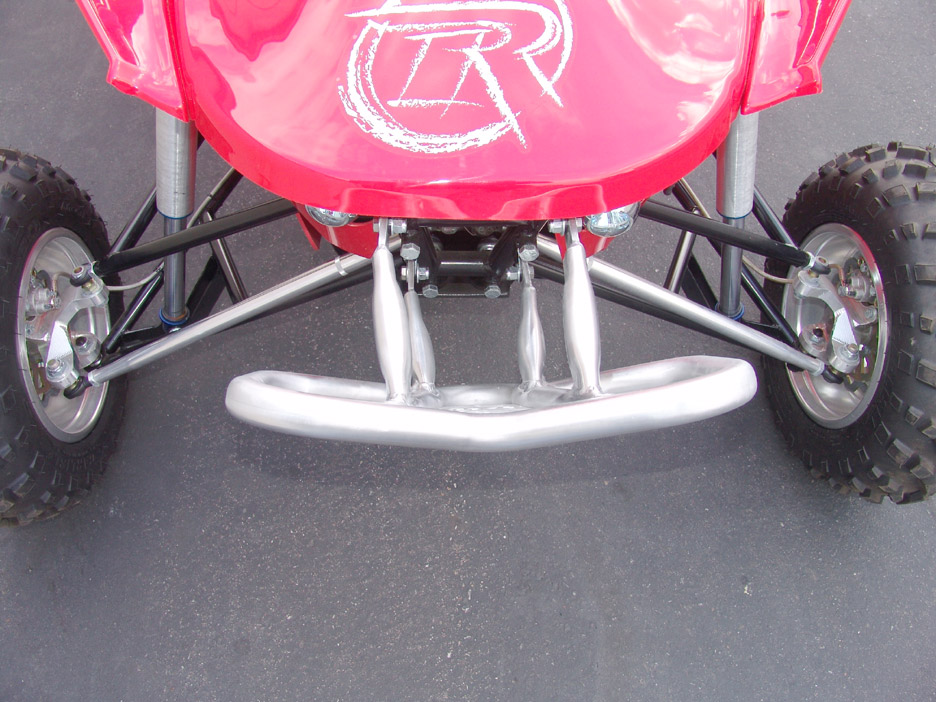

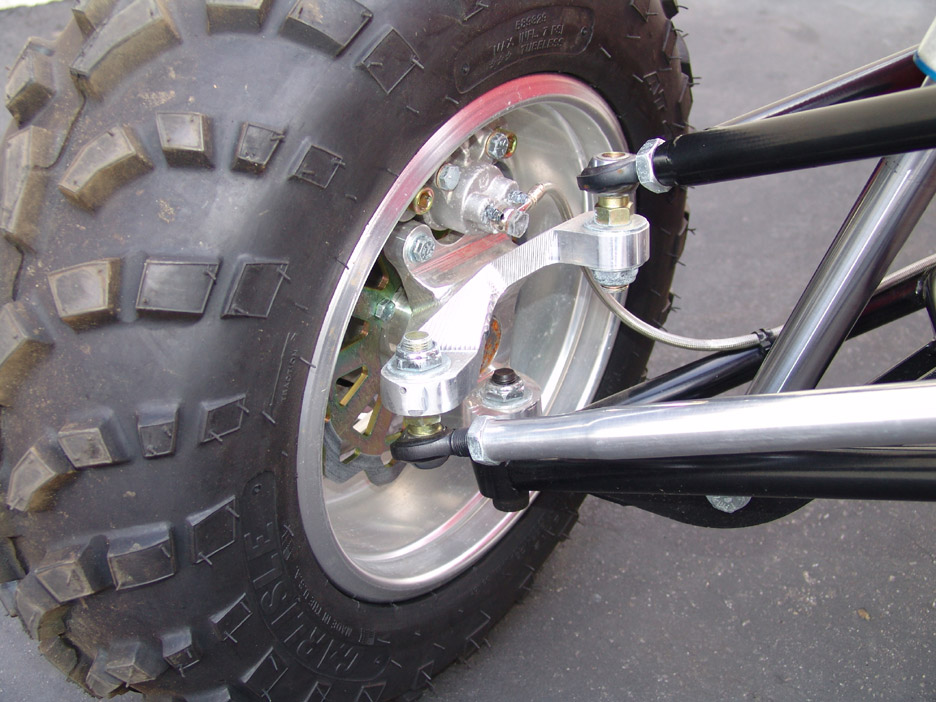

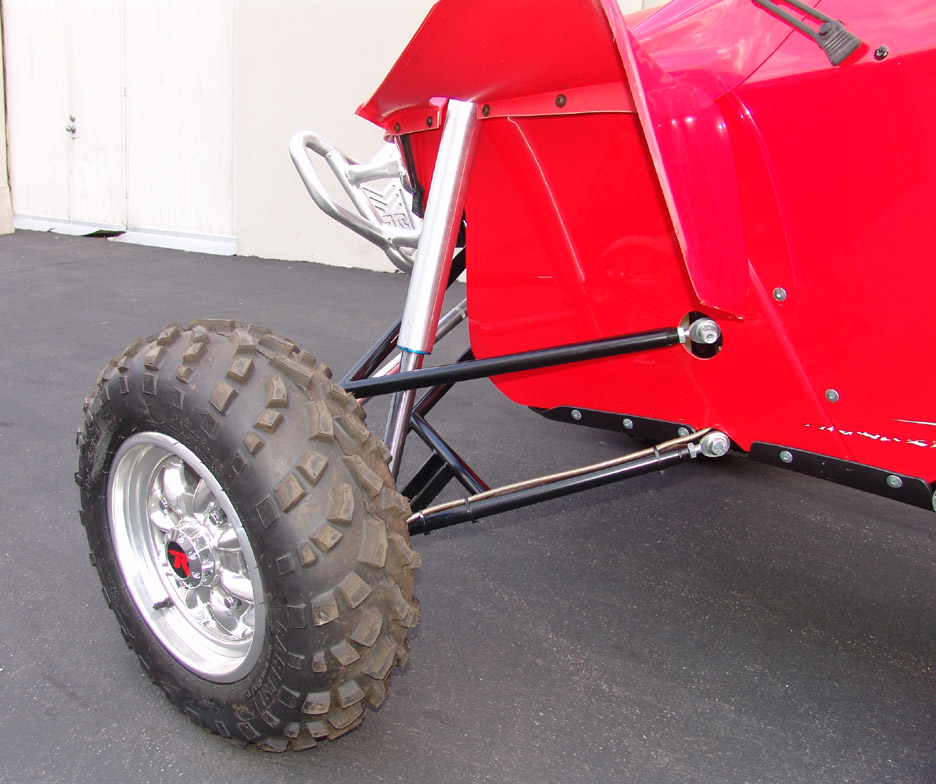

  • Suspension: Double A-arm w/ Chromoly 10” Fox Air Shocks

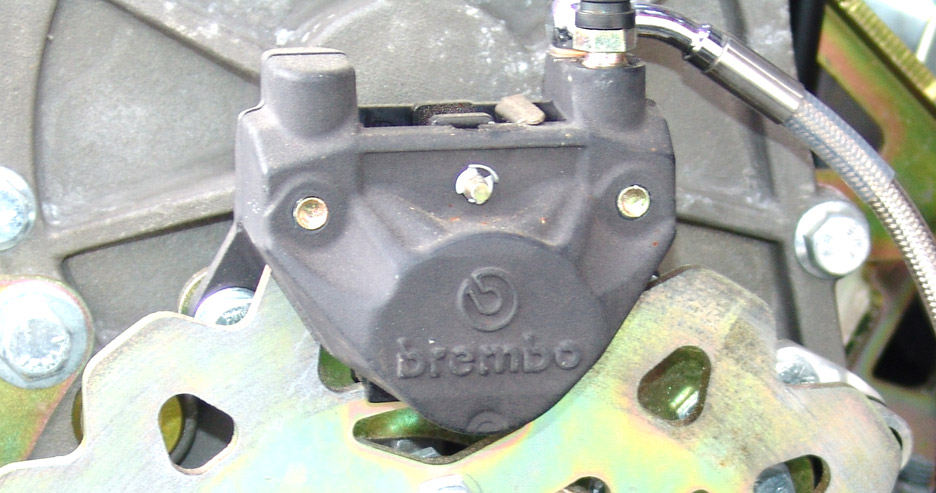

  • Brakes: Wilwood /front Brembo /rear

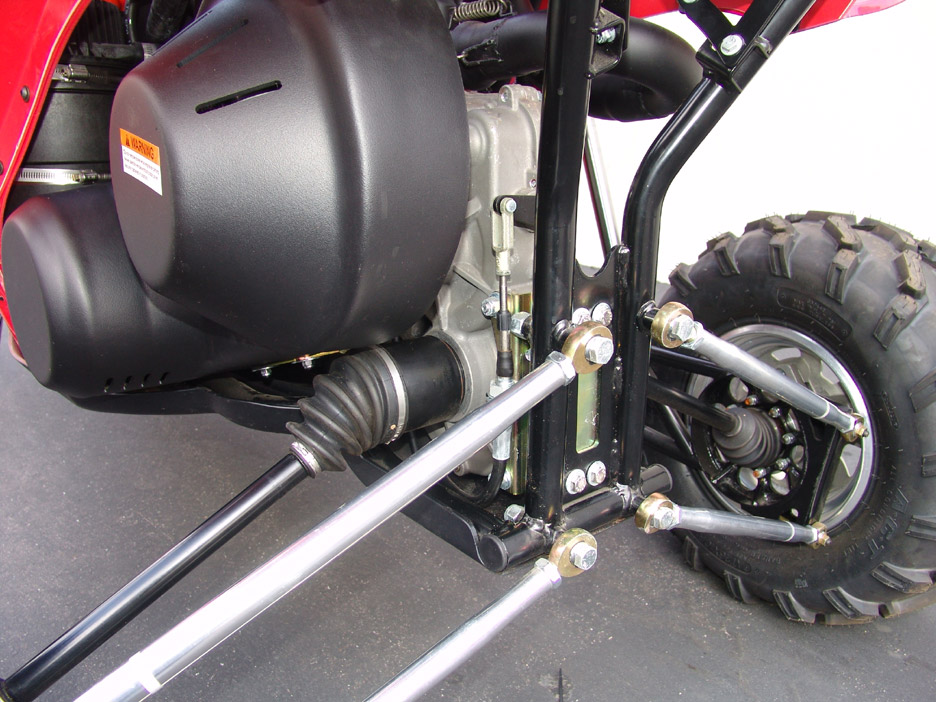

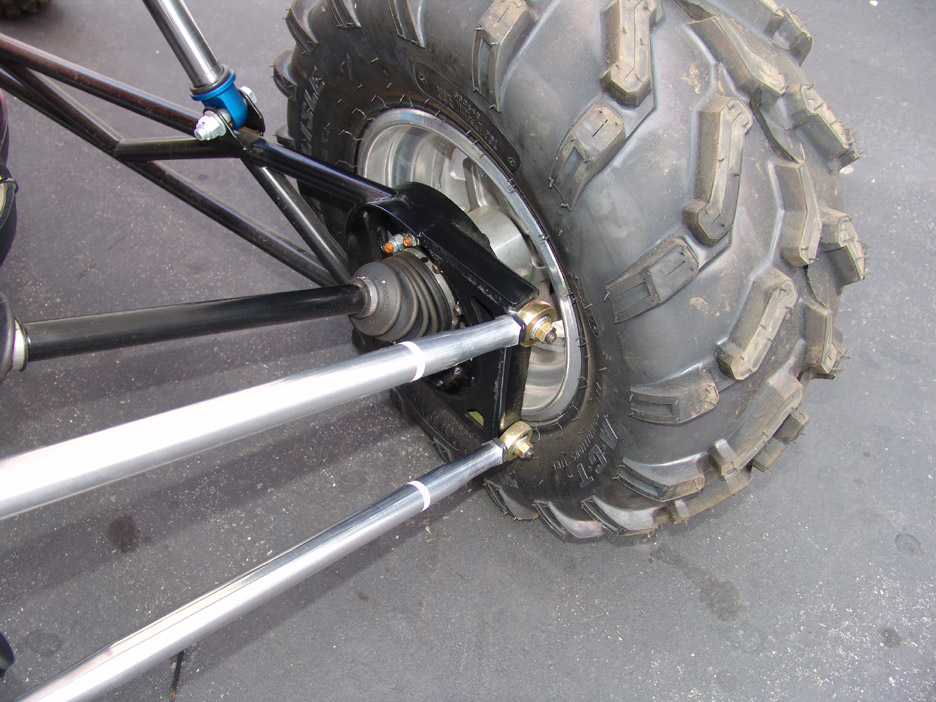

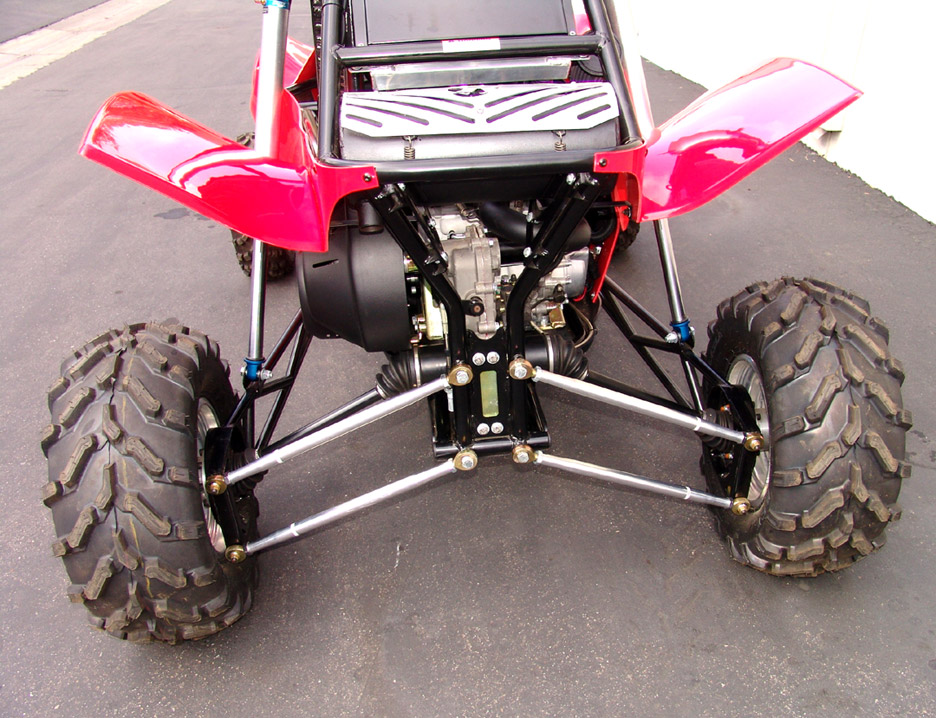

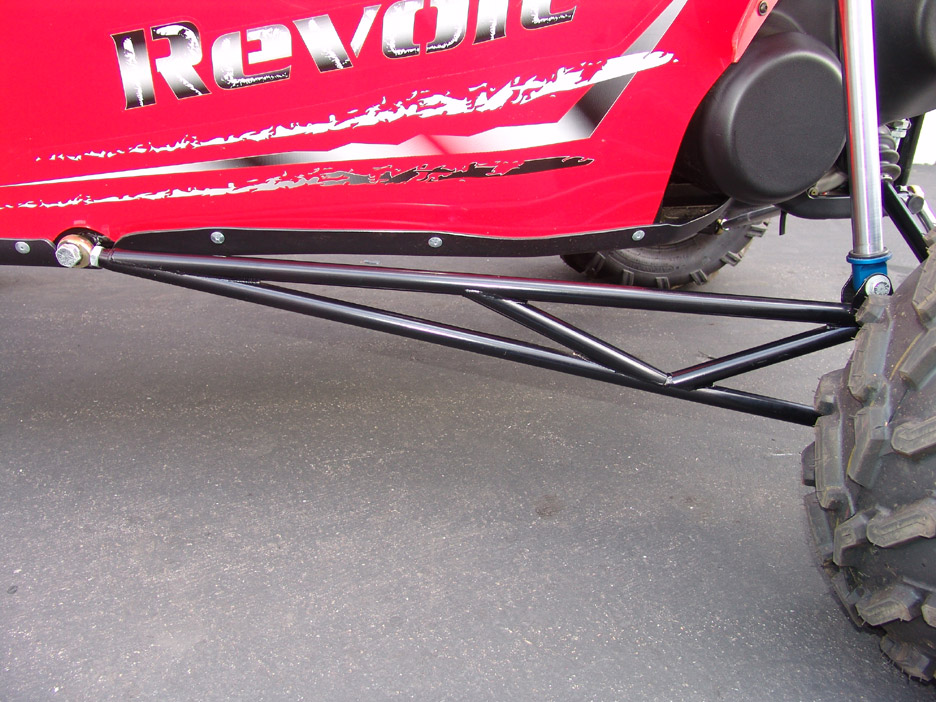

  • Rear Suspension: Trailing arm w/ Chromoly 12” Fox Air Shocks

  • Headlights: 2 PIAA 55 Watt Dichroic halogen

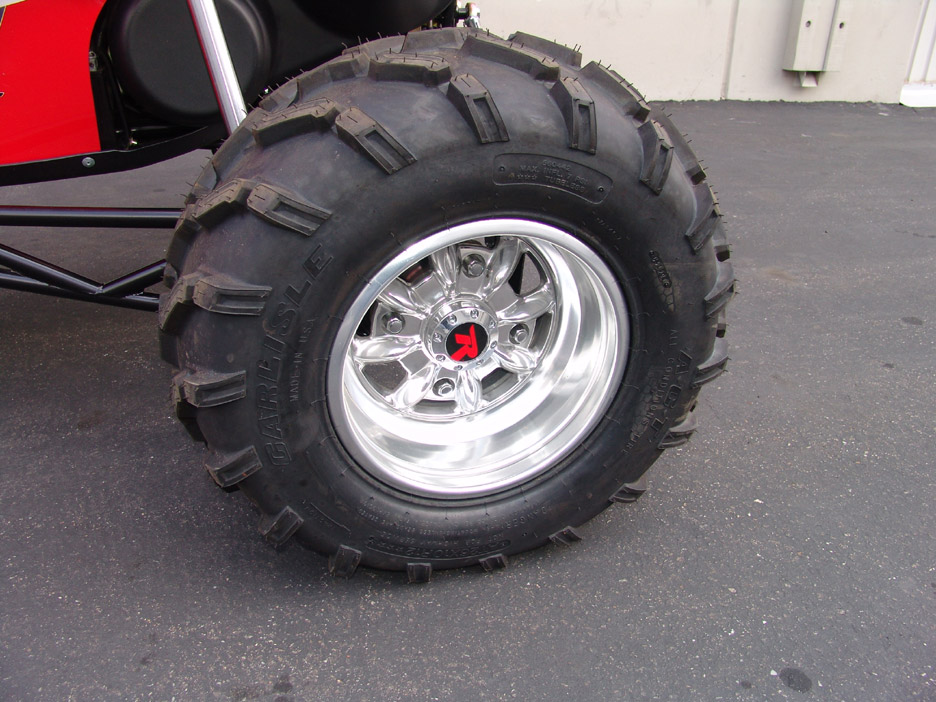

  • Tires: – Front/Rear 23 x 8.0 – 12 / 26 x 10.0 – 12

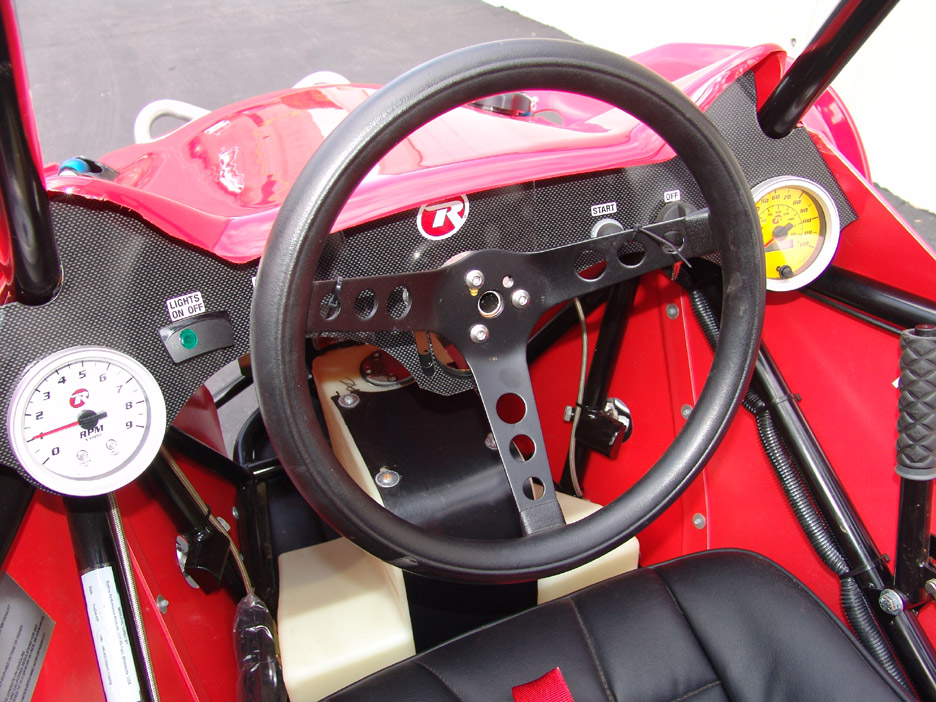

  • Gauges: Tachometer / Speedometer / Odometer

  • Wheel Base: 73.5 in / 186.7 cm

  • Length/Width/Height 98 in / 65 in / 60 in – 249 cm / 165 cm / 152 cm

  • Ground Clearance: 17 in / 43 cm front – 17 in / 43cm rear

  • Dry Weight: 694 lbs / 315 kgs

  • Price: $13,998.95

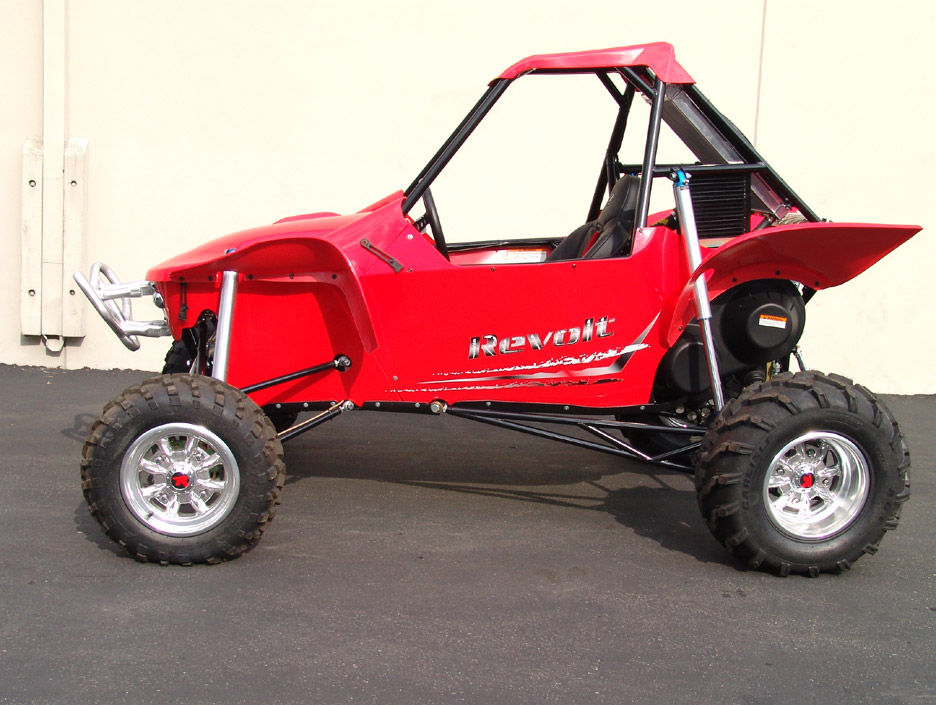

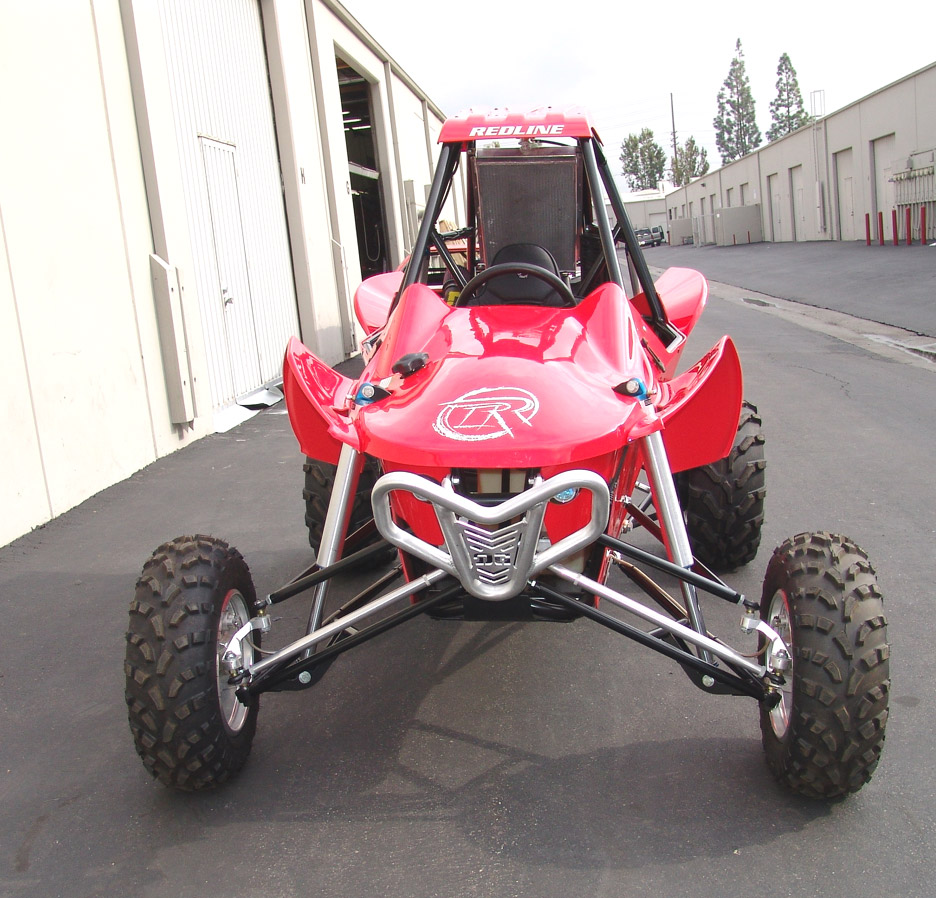

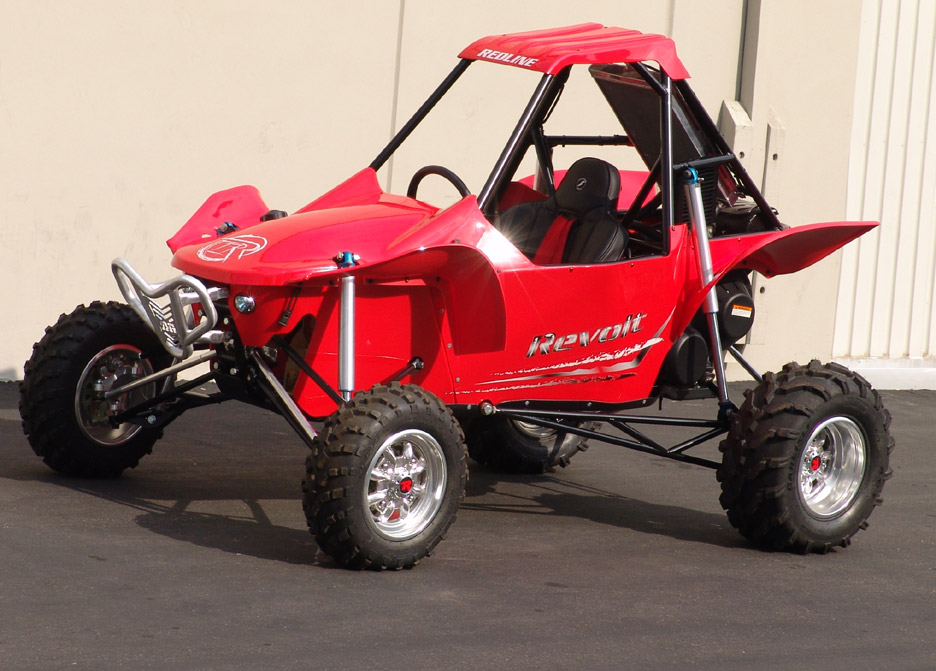

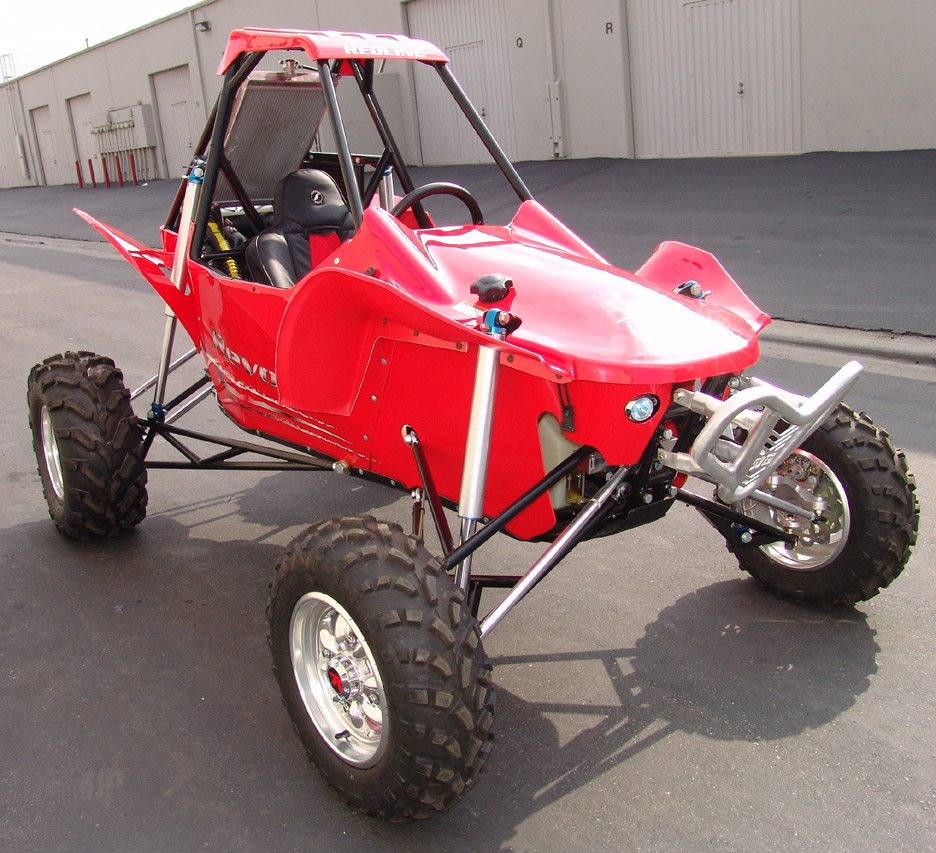

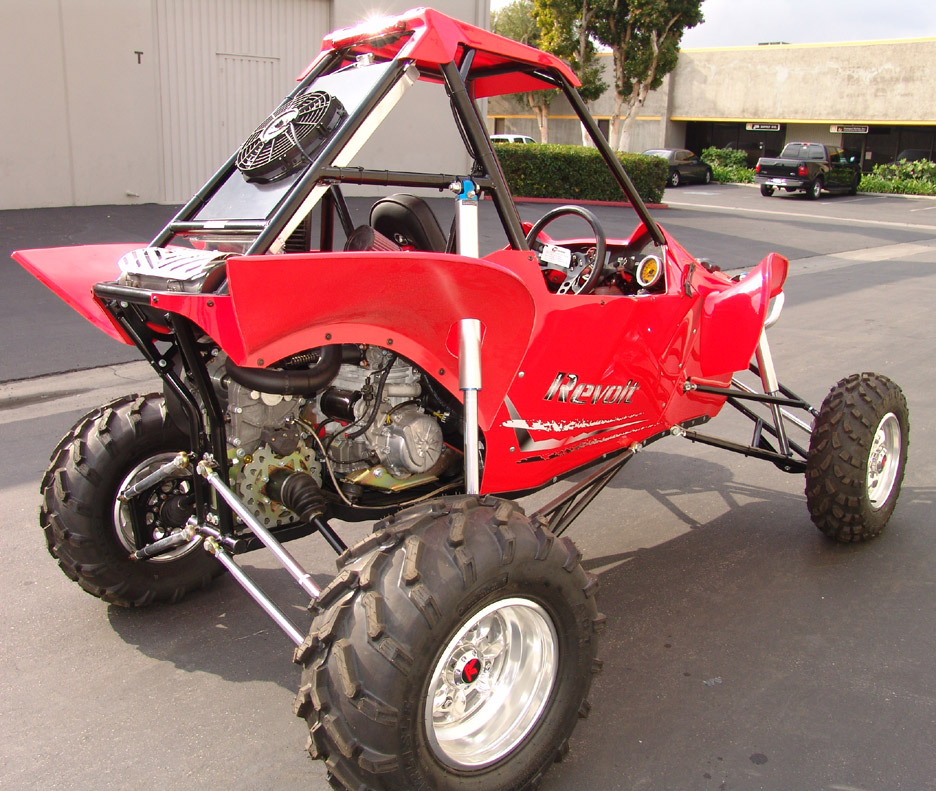

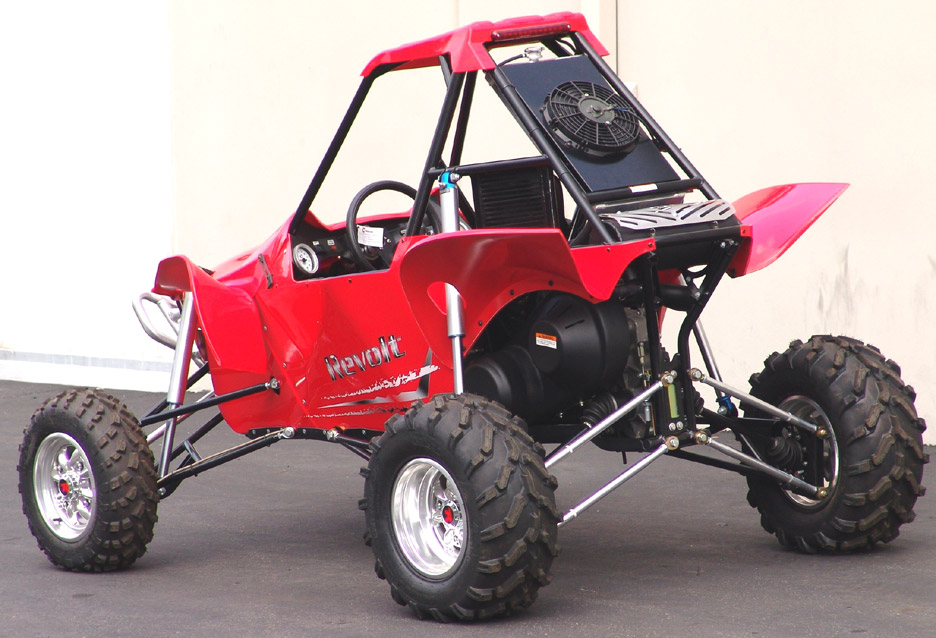

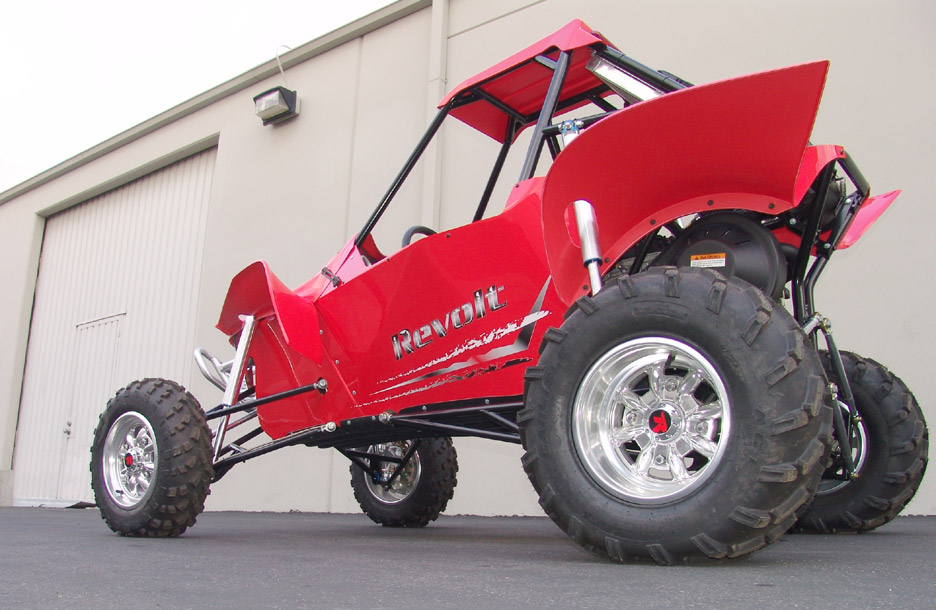

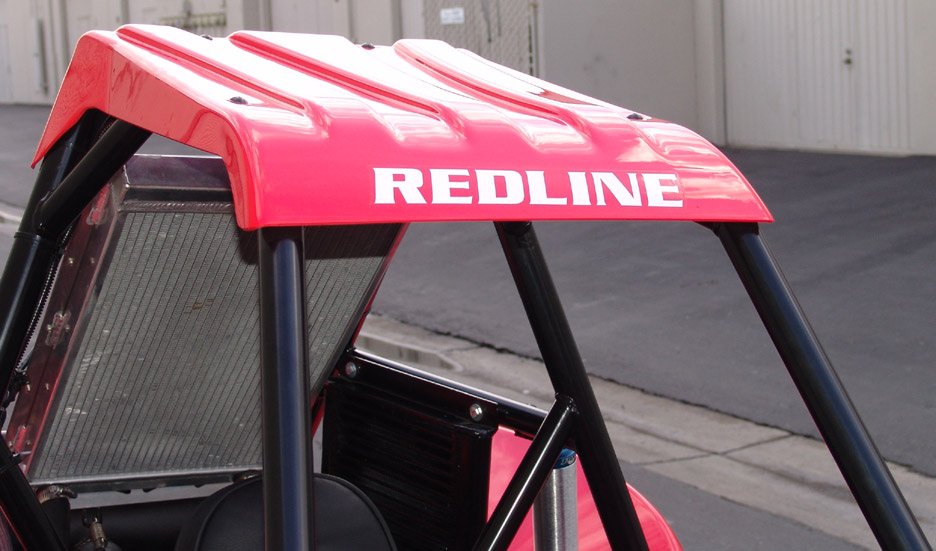

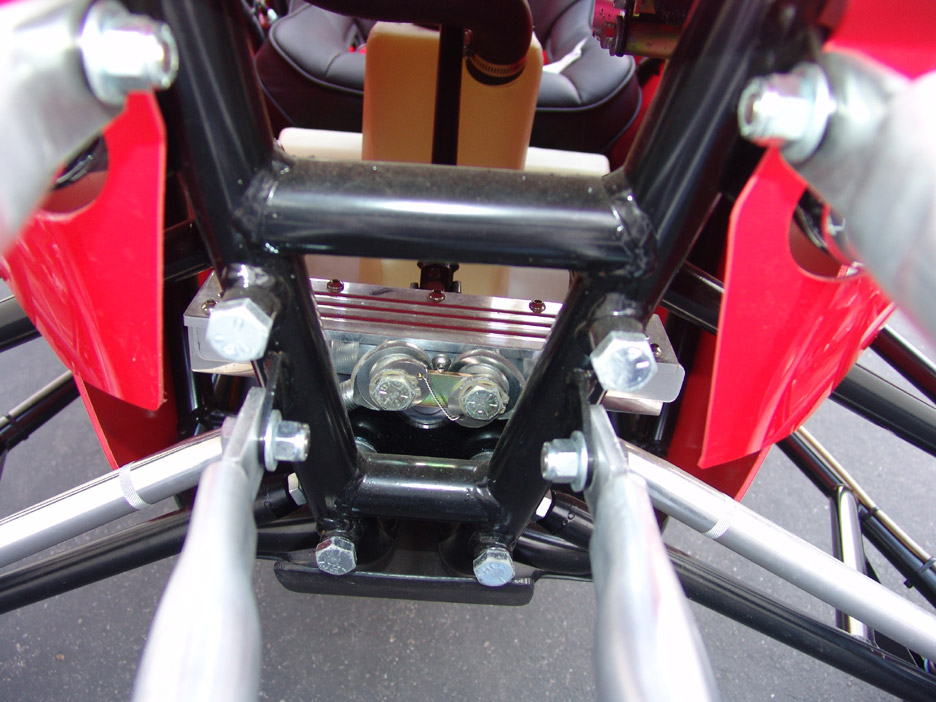

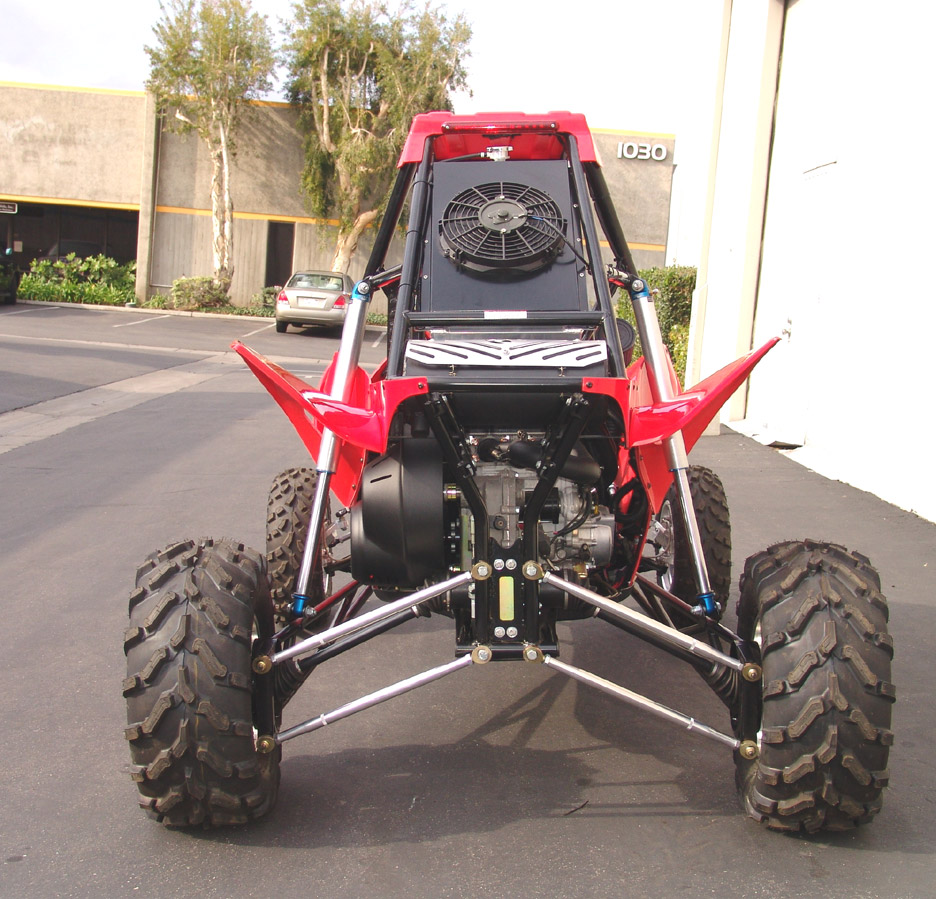

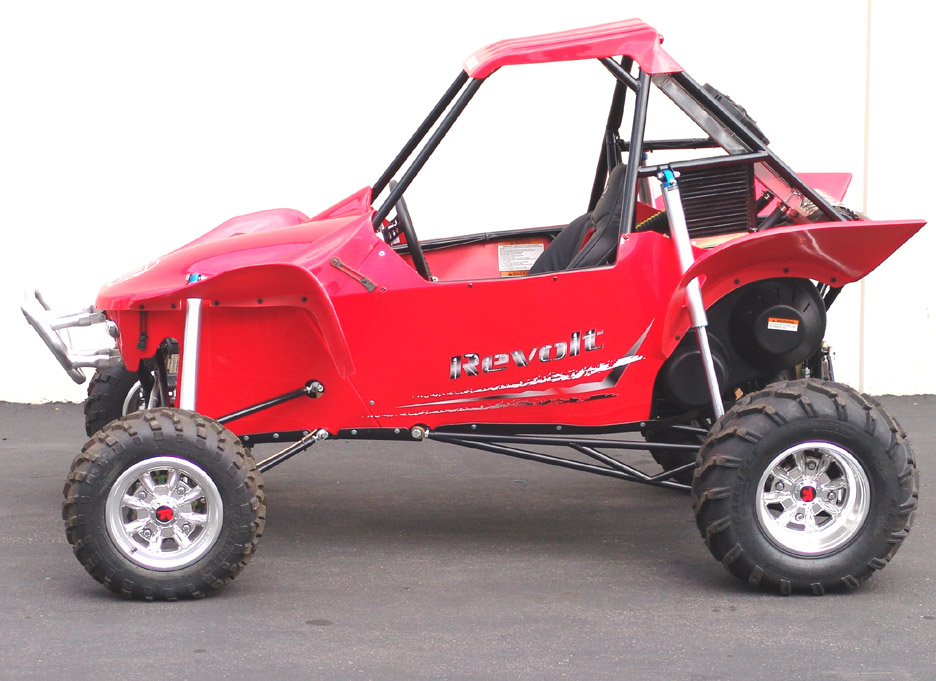

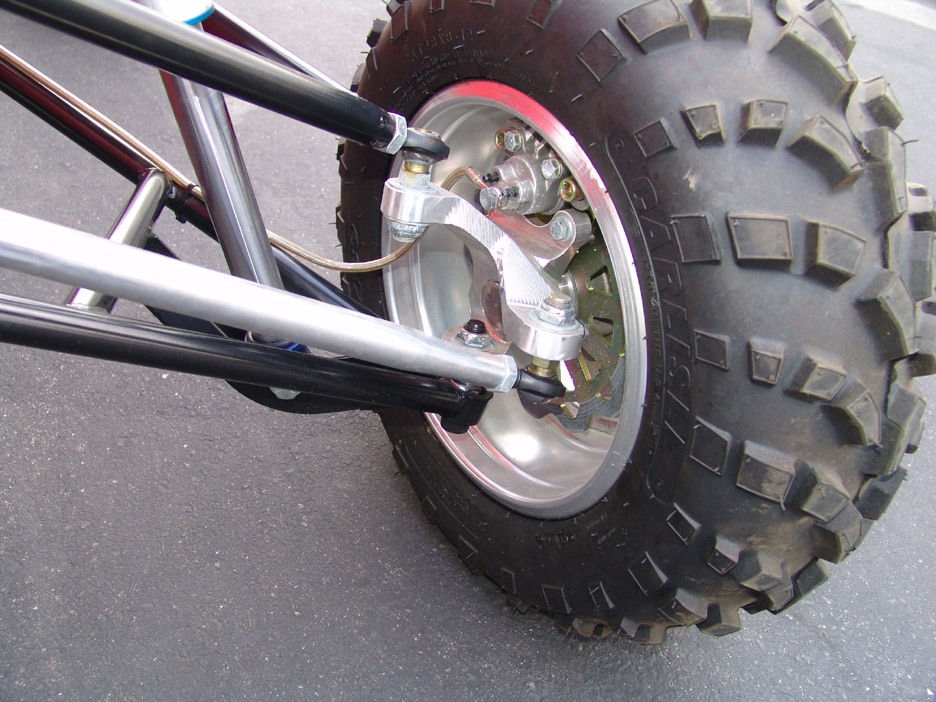

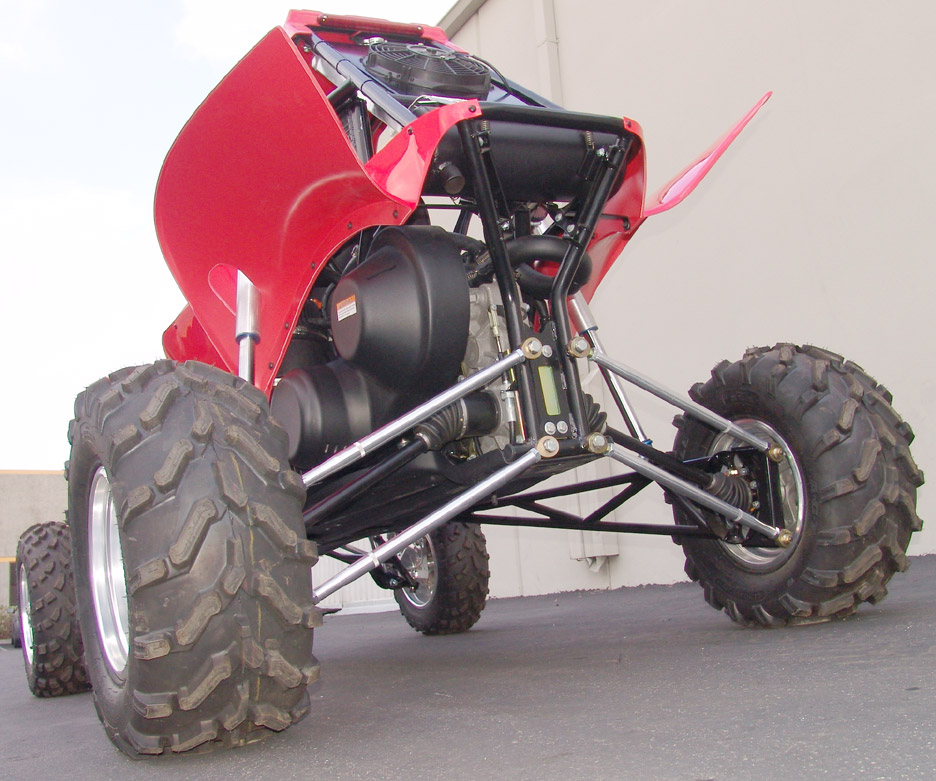

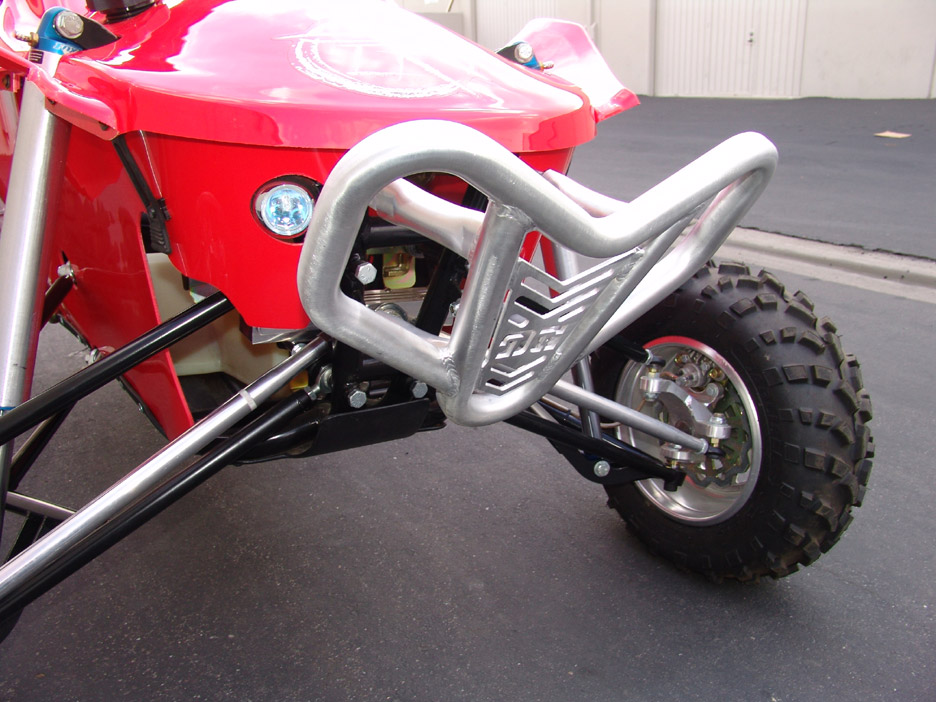

  • Please click on below thumbnail images for larger photograph
