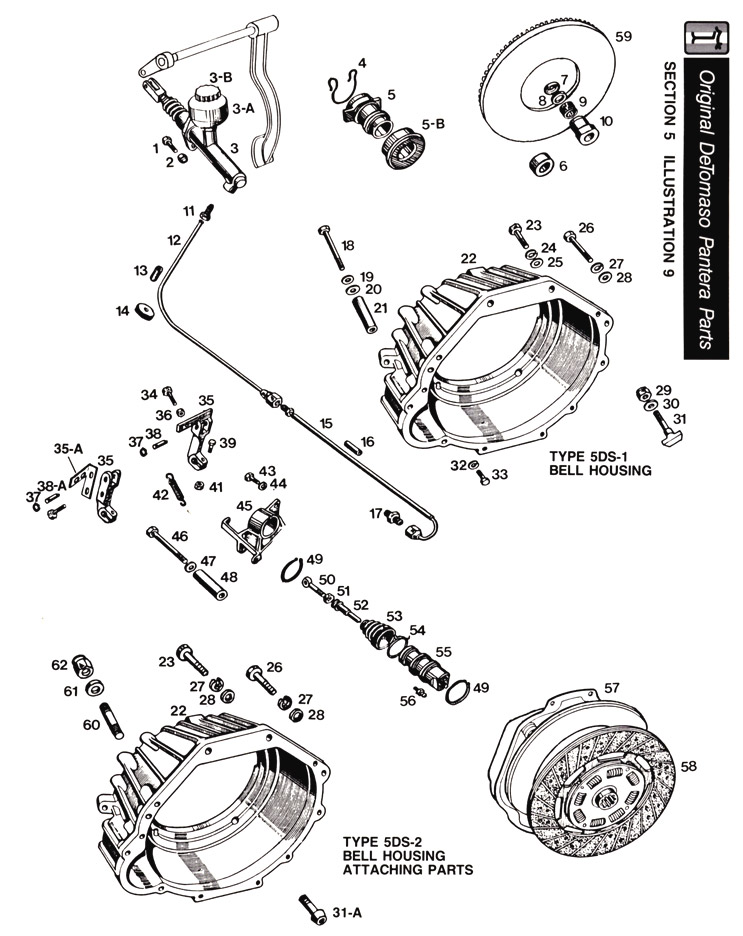

Section 5 Illustration 9
Illustration Number |
Description |
Part Number |
1 |
Bolt Clutch Master Cylinder to Support |
05001A |
2 |
Nut Clutch Master Cylinder to Support M8 x 1.25 ELN |
01010A |
3 |
Clutch Master Cylinder w/o Effort Reduction Kit |
05002A |
3 |
Clutch Master Cylinder with Effort Reduction Kit |
05002B |
3A |
Reservoir Clutch Master Cylinder |
05003A |
3B |
Cap Clutch Master Cylinder Reservoir |
01336A |
4 |
Retainer Hub to Fork |
05004A |
5 |
Hub Clutch Release Bearing |
05005A |
5B |
Bearing Assembly Clutch Release |
05006A |
6 |
Pilot Bearing I-Piece Design Type 2 Transaxle |
05007A |
7 |
Retainer Pilot Bearing Type I Transaxle |
05008A |
8 |
Felt Seal Pilot Bearing Type 1 Transaxle |
05009A |
9 |
Pilot Bearing Type 1 Transaxle (Roller Cage Type) |
05007B |
10 |
Adaptor Pilot Bearing to Crankshaft Type 1 |
05010A |
11-12 |
Tube Clutch Master Cylinder to Rear Tube |
05011A |
13 |
Insulator (Fabricate from Bulk Hose) |
|
14 |
Grommet Front Trunk Floor to Tube |
05012A |
15 |
Tube Clutch Slave Cylinder to Front Tube (Red) |
05013A |
16 |
Insulator (Fabricate from Bulk Hose) |
|
17 |
Fitting Clutch Slave Cylinder to Tube |
05014A |
18 |
Bolt Transaxle to Bell Housing -7/16 x 20 x 4" |
05015A |
19 |
Lock Washer Mll |
01216A |
20 |
Flat Washer 7/16" |
05016A |
21 |
Spacer Transaxle to Bell Housing 60mm |
05017A |
22 |
Bell Housing Type I w/2 Inspection Holes at Top |
05018A |
22 |
Bell Housing Type 2 w/1 Inspection Hole Left Top Side |
05018B |
23 |
Bolt Bell Housing to Block 7Yl6 - 14 x 1 3/4" |
05019A |
24 |
Lock Washer 7/l6" |
05020A |
25 |
Flat Washer 7/16" |
05021A |
26 |
Bolt 7/16 - 14 x 2-1/2" |
05022A |
27 |
Lock Washer 7/l6" |
05020A |
28 |
Flat Washer 7/16" |
05021A |
29 |
Nut Transaxle to Bell Housing (Lower)Type 1 M12 x1.25 |
05022A |
30 |
Flat Washer M12 |
05023A |
31 |
Transaxle Attaching Bolt Type I |
05024A |
31A |
Transaxle
Attaching Bolt Lower (Type 2) |
05025A |
32 |
Lock Washer 8mm |
02014A |
33 |
Bolt Motor Plate to Bell Housing M8 x 1.25 x 12 |
05026A |
34 |
Bolt Clutch Free Travel Adj. M6 x 1 x 25mm |
01313A |
35 |
Lever
Clutch Arm 1 Piece |
|
35 |
Lever Clutch Arm (2 Piece Design) |
05027A |
35A |
Bracket Clutch Adjustment & Return Spring |
05027B |
36 |
Nut M6 |
05028A |
37 |
Clip |
04009A |
38 |
Pin Clutch Lever to Slave Cylinder 31mm Long |
05029A |
38A |
Pin
Clutch Lever to Slave Cylinder |
05029B |
39 |
Bolt Clutch Lever Retaining M8 x 1.25 x 35mm |
03016A |
41 |
Nut Clutch Lever Retaining M8 x 1.25 ELN |
01417A |
42 |
Spring Clutch Return |
05030A |
43 |
Bolt
Slave Cylinder Bracket to Bell Housing |
02013A |
44 |
Lock Washer M8 |
02014A |
45 |
Bracket Clutch Slave Cylinder to Bell Housing Type 1 |
05031A |
45 |
Bracket Clutch Slave Cylinder to Bell Housing Type 2 |
050318 |
46 |
Bolt Slave Cylinder Bracket to Engine 7/I6 x 14 x 5-1/2" |
05032A |
47 |
Lock Washer 7/l6" |
05020A |
48 |
Spacer Slave Cylinder Bracket to Bell Housing (75mm) |
05033A |
49 |
Snap Ring Slave Cylinder Retaining |
05034A |
50 |
Rod Slave Cylinder Threaded w/Eye |
05035A |
51 |
Nut Slave Cylinder Rod Jamb M8 x 1.25 |
01417A |
52 |
Plunger Clutch Slave Cylinder |
05036A |
50-56 |
Clutch Slave Cylinder Assembly |
05037A |
56 |
Bleed Screw w/Cap Clutch Slave Cylinder |
05038A |
57 |
Clutch Pressure Plate Type 1 Transaxle |
05039A |
57 |
Clutch Pressure Plate Type 2 Transaxle |
05039B |
58 |
Clutch Disc Type I Transaxle |
05040A |
58 |
Clutch Disc Type 2 Transaxle |
05040B |
59 |
Flywheel & Ring Gear Assembly |
05041A |
60 |
Stud
Bell Housing to Transaxle Type 2 |
05042A |
61 |
Flat Washer M10 |
05043A |
62 |
Nut Bell Housing to Transaxle Type 2 MIO x 1.5 ELN |
02003A |
