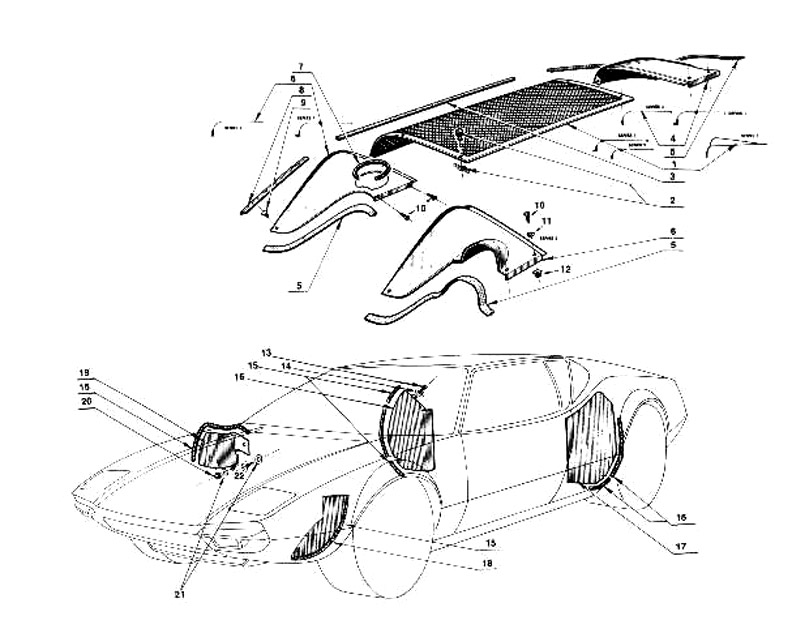

| Illustration | Part Description | Part Number |
| 1 | Grille Center Over Engine Before #1285 N/R | 21001A |
| 1 | Grille Center Over Engine Before # 1285 to #2002 1st Series | 21001B |
| 1 | Grille w/o Fuel Filler 2nd Series | 21001C |
| 1 | Grille w/ External Fuel Filler (Center Raised) 3rd Series | 21001D |
| 2 | Fastener Grille to Shield (Dzus Type) | 18129B |
| 3 | Weather Strip Center | 21001A |
| 4 | Shield Engine Cover RH 1st Series | 21003A |
| 4 | Shield Engine Cover RH 2nd Series | 21003B |
| 4 | Shield Engine Cover RH 3rd Series w/ Access Hole | 21003C |
| 4 | Shield Engine Cover RH GT5 (From # 9000) | 21003D |
| 5 | Weather Strip Shield to Body R & L | 21004A |
| 6 | Shield Engine Cover LH 1st Series | 21005A |
| 6 | Shield Engine Cover LH 2nd Series | 21005B |
| 6 | Shield Engine Cover LH 3rd Series w/ External Fuel Filler | 21005C |
| 6 | Shield Engine Cover LH GT5 (From #9000) | 21005D |
| 7 | Trim Fuel Filler Opening & Access Hole | 21006A |
| 8 | Weather Strip Shield Front R & L | 21007A |
| 9 | Plug | 21008A |
| 10 | Screw Shield to Bracket (On Side) #6 x 3/4 Sheet Metal | 21009A |
| 10 | Screw Shield to Bracket Used w/ Anchor (On Top) | 21009B |
| 11 | Flat Washer | 14029B |
| 12 | Anchor Used w/ Top Screws On Shields | 21009C |
| 13 | Bolt Splash Shield to Body M6 x 1.0 x 12 | 20224A |
| 14 | Flat Washer Body Type | 09033A |
| 15 | Weather Strip Shield to Body RR | 21010A |
| 15 | Weather Strip Shield to Body LR | 21010A |
| 15 | Weather Strip Shield to Body R & L Front | 21010C |
| 15 | Weather Strip Wiper Cover to Body | 17017A |
| 16 | Shield 1/4 Panel Splash RH | 21011A |
| 16 | Shield 1/4 Panel Splash GT5 RH | 21011B |
| 16 | Shield 1/4 Panel Splash RH GT5-S | 21011C |
| 17 | Shield 1/4 Panel Splash LH w/ External Fuel Filler | 21012A |
| 17 | Shield 1/4 Panel Splash GT5 | 21012B |
| 17 | Shield 1/4 Panel Splash LH GT5-S | 21012C |
| 18 | Shield Front Fender Splash | 21013A |
| 18 | Shield Front Fender Splash GT5 RH | 21013B |
| 18 | Shield Front Fender Splash GT5 LH | 21013C |
| 18 | Shield Front Fender Splash GT5-S RH | 21013D |
| 18 | Shield Front Fender Splash GT5-S LH | 21012E |
| 19 | Shield Wiper Motor Splash | 17016A |
| 19 | Shield Wiper Motor Splash GT5 (From #9000) | 17016B |
| 19 | Shield Wiper Motor Splash GT5-S | 17016C |
| 20 | Nut Splash Shield Retaining M6 x 1.0 | 11020B |
| 21 | Flat Washer Splash Shield Retaining Body Type | 09033A |
| 22 | Screw Wiper Shield Retaining Sheet Metal Type #8 x 1/2" | 17017B |
