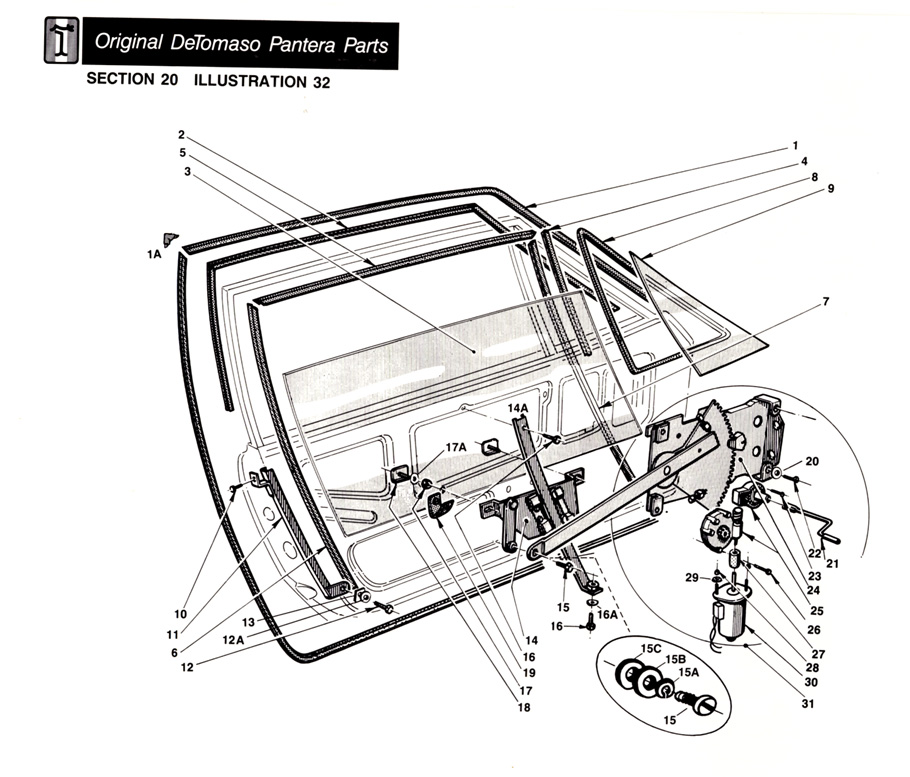

| Illustration | Part Description | Part Number |
| 1 | Weatherstrip Door Opening on Body R & L | 20200A |
| 1A | Corner Cap Door Opening Weatherstrip | 20201A |
| 2 | Weatherstrip Door Top RH | 20202A |
| 2 | Weatherstrip Door Top LH | 20203A |
| 3 | Glass Door RH (Tinted) | 20204A |
| 3 | Glass Door LH (Tinted) | 20205A |
| 4 | Felt Door Glass Run Front | 20206A |
| 5 | Felt Door Glass Run Upper | 20206B |
| 6 | Felt Door Glass Run Rear | 20206C |
| 7 | Glass Run Front Before # 1450 | 20207A |
| 8 | Weatherstrip Door Vent Window | 20208A |
| 9 | Glass Door Vent Window RH (Tinted) | 20209A |
| 9 | Glass Door Vent Window LH (Tinted) | 20210A |
| 10 | Screw Glass Run to Door Rear Upper (Chrome) | 20211A |
| 11 | Glass Run Rear RH Metal | 20212A |
| 11 | Glass Run Rear LH Metal | 20213A |
| 12 | Bolt Glass Run to Door Lower M6 x 1 x 10mm | 20214A |
| 12A | Flat Washer 6mm | 11020C |
| 13 | Spacer Glass Run to Door | 20215A |
| 14 | Bracket Assembly Door Glass RH | 20216A |
| 14 | Bracket Assembly Door Glass LH | 20217A |
| 14A | Track Assembly Door Glass RH | 20216B |
| 14A | Track Assembly Door Glass LH | 20217B |
| 15 | Bolt Regulator to Arm | 20211A |
| 15A | Spring Washer | 20218A |
| 15B | Washer Steel | 20219A |
| 15C | Washer Fiber | 20220A |
| 16 | Bolt Track to Door M6 x 1 x 12mm | 20214A |
| 16A | Flat Washer 6mm | 11020C |
| 17 | Nut Glass Retainer M6 x 1 | 11020B |
| 17A | Flat Washer 6mm | 11020C |
| 18 | Retainer Door Glass to Bracket | 20221A |
| 19 | Insulator Door Glass to Retainer | 20222A |
| 19 | Insulator Door Glass to Retainer from #9000 | 20222B |
| 20 | Flat Washer M6 | 11020C |
| 21 | Handle Emergency Window Crank | 20223A |
| 22 | Bolt Regulator to Door M6 x 1 x 12mm | 20224A |
| 23 | Bolt Gear Box to Regulator M4 x .70 x x 25mm | 20224B |
| 24 | Regulator Without Gear RH | 20225A |
| 24 | Regulator without Gear RH GT5 (From # 9000) | 20225B |
| 24 | Regulator without Gear LH | 20226A |
| 24 | Regulator without Gear LH GT5 (From # 9000) | 20226B |
| 25 | Gear Kit Complete RH | 20227A |
| 25 | Gear Kit RH GT5 Serviced w/ Regulator Assembly Only | |
| 25 | Gear Kit Complete LH | 20228A |
| 25 | Gear Kit LH GT5 Serviced w/ Regulator Assembly Only | |
| 26 | Bolt Gear Box to Radiator | 16042A |
| 27 | Coupling Gear Box to Motor | 20229A |
| 28 | Nut Window Motor to Regulator M5 x .08 | 16033A |
| 29 | Insulator Power Window Motor to Bracket | 16047A |
| 30 | Motor Power Window (Before #9000) | 16046A |
| 31 | Regulator w/ Motormount & Gear w/o #21 RH | 20232A |
| 31 | Regulator with Motor GT5 RH (From #9000) | 20232B |
| 31 | Regulator w/ Motor & Gear w/o #21 LH | 20233A |
| 31 | Regulator w/ Motor GT5 LH (From # 9000) | 20233B |
