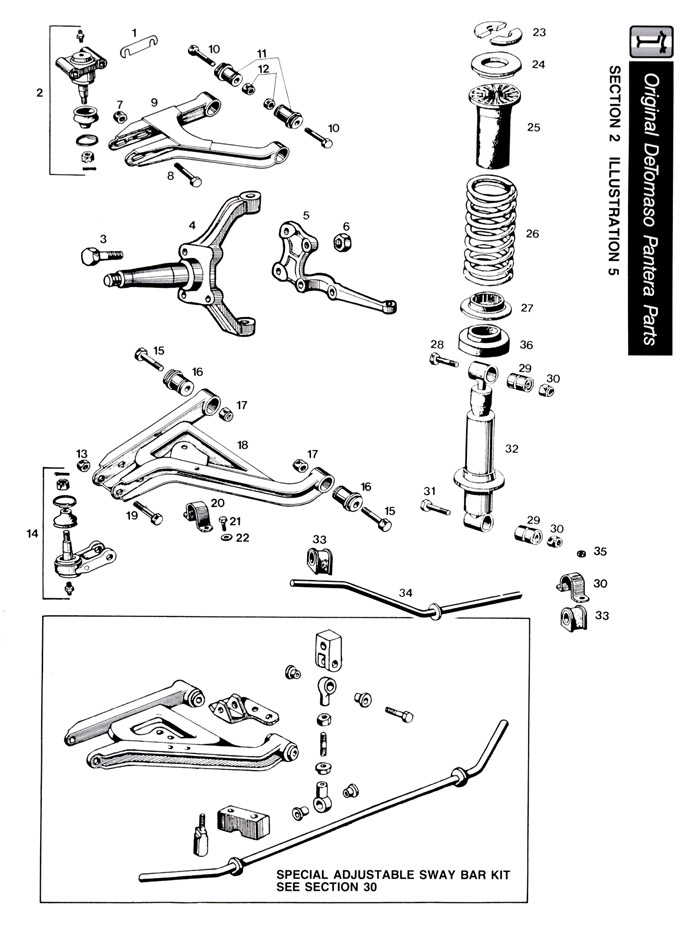

| Illustration Number |
Description |
Part Number |
| 1 | Shim Front Alignment - 3/64" | 02002A |
| 1 | Shim Front Alignment - 5/32" | 02002B |
| 2 | Ball Joint Upper | 02001A |
| 3 | See Section 1, Illustration #1 | |
| 4 | See Section 1, Illustration #1 | |
| 5 | See Section 1, Illustration #1 | |
| 6 | See Section 1, Illustration #1 | |
| 7 | Nut, Upper Ball Joint M10 x 1.5 ELN | 02003A |
| 8 | Bolt, Upper Ball Joint M10 x 1.5 x 90mm | 02004A |
| 9 | A-Arm Upper RH w/o Adjustable Caster - N/A | |
| 9 | A-Arm Upper RH with Adjustable Caster | 02005A |
| 9 | A-Arm Upper LH w/o Adjustable Caster N/A | |
| 9 | A-Arm Upper LH with Adjustable Caster | 02006A |
| 10 | Bolt A-Arm to Chassis 12M x 1.75 x 80mm | 02007A |
| 11 | Bushing (A-Arm) | 02008A |
| 12 | Nut A-Arm Bolt 12mm x 1.75 ELN | 02009A |
| 13 | Nut Lower A-Arm Ball Joint MI0 x 1.5 ELN | 02003A |
| 14 | Ball Joint Lower | 02001B |
| 15 | Bolt A-Arm to Chassis 12M x 1.75 x 80mm | 02007B |
| 16 | Bushing (A-Arm) | 02008A |
| 17 | Nut A-Arm Bolt 12mm x 1.75 ELN | 02009A |
| 18 | A-Arm Lower RH | 02010A |
| 18 | A-Arm Lower LH | 02011A |
| 19 | Bolt (Lower Ball Joint Outer) M10 x 1.5 x 80 mm | 02004A |
| 20 | Bracket Sway Bar to A-Arm | 02012A |
| 21 | Bolt Sway Bar Bracket M8 x 1.25 x 20 | 02013A |
| 22 | Lock Washer 8rnm | 02014A |
| 23 | Retainer Spring to Shock | 02015A |
| 24 | Retainer Ring Spring to Shock | 02016A |
| 25 | Insulator Spring Upper | 02017A |
| 26 | Spring Front Coil | 02018A |
| 26 | Spring Front Coil GT5 | 02018B |
| 27 | Insulator Spring Lower | 02017B |
| 28 | Bolt Shock to Chassis 12M x 1.75 x 80mm | 02007A |
| 29 | Bushing (Shock) | 02008B |
| 30 | Nut Shock Bolt 12mm x 1.75 ELN | 02009A |
| 31 | Bolt Shock to A-Arm M12 x 1.75 x 80mm | 02007A |
| 32 | Shock Absorber Front | 02023A |
| 32 | Shock Absorber GT-5 Front | 02023B |
| 33 | Bushing Sway Bar Mounting | 02019A |
| 34 | Sway Bar Front | 02020A |
| 35 | Nut Bracket to Chassis M8 x 1.25 ELN | 01010A |
| 36 | Spacer Spring to Shock | 02022A |
| 36 | Spacer Spring to Shock - GT5 | 02022B |
