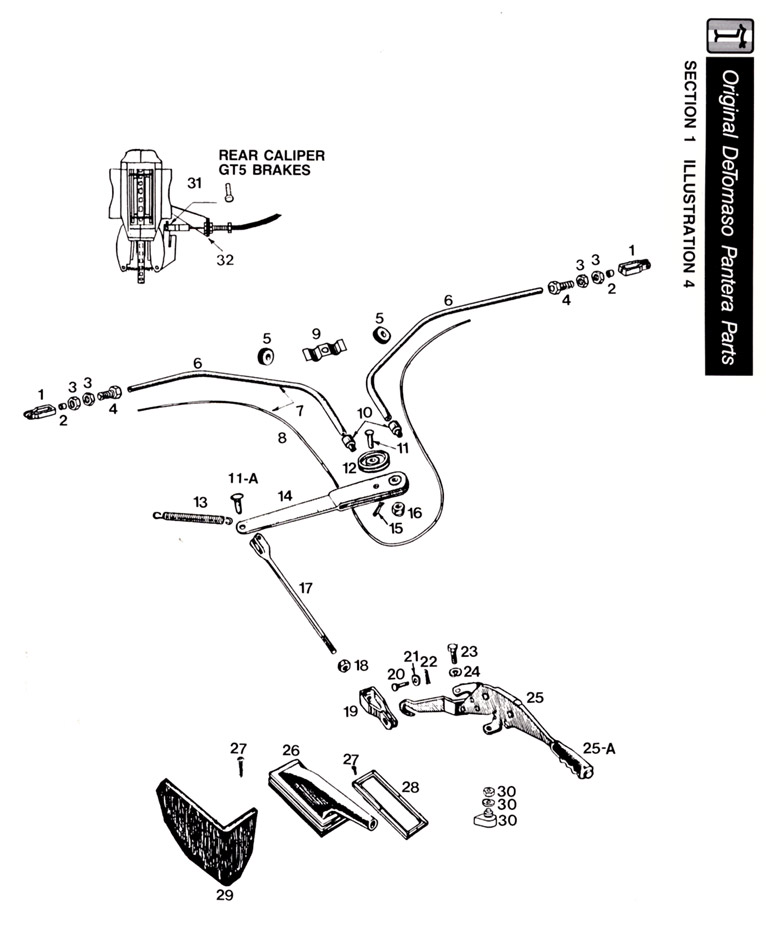

| Illustration Number |
Description |
Part Number |
| 1 | Clevis Park Brake Caliper End | 01400A |
| 1 | Clevis Park Brake Caliper End GT5 | 01400B |
| 2 | Sleeve Park Brake Cable End | 01401A |
| 3 | Nut Park Brake Cable Fitting M10 x 1.5 | 01402A |
| 4 | Fitting Park Brake Cable | 01403A |
| 5 | Grommet Park Brake Cable at Inner Fender | 01404A |
| 6 | Housing Park Brake Cable RH | 01405A |
| 6 | Housing Park Brake Cable LH | 01405B |
| 7 | Cable Assembly Park Brake Complete (Parts #1, 2, 3, 4, 6, 8,10) | 01406A |
| 7 | Cable Assembly Park Brake Complete Group 3 | 01406B |
| 7 | Cable
Assembly park Brake Complete (Parts #1, 2. 3, 4, 6, 8, 10) GT5 From #9170 |
01406C |
| 8 | Cable (Inner) Park Brake (For 01406A Cable Assembly Only) | 01407A |
| 9 | Bracket Park Brake to Transaxle | 01408A |
| 10 | Cable Shield End | 01409A |
| 11 | Pin Park Brake Cable Pulley | 01410A |
| 11A | Pin - Rod to Equalizer | 01410B |
| 12 | Pulley Park Brake Cable | 01411A |
| 13 | Spring Park Brake Lover | 01412A |
| 14 | Lever Park Brake Equalizer | 01413A |
| 14 | Lever Park Brake Equalizer GT5 from #9170 | 01413B |
| 15 | Clip Park Brake Pulley Pin | 01414A |
| 16 | Nut Equalizer Lever to Body M10 x 1.5 ELN | 01037B |
| 17 | Rod Control to Equalizer | 01415A |
| 17 | Rod Control to Equalizer GT5 w/Park Brake on Driver's Side | 01416B |
| 18 | Nut Park Brake Rod Jamb M8 x 1.25 | 01417A |
| 19 | Clevis Park Brake Rod | 01418A |
| 20 | Pin Park Brake Control | 01419A |
| 21 | Washer M8 | 01009A |
| 22 | Clip | 01414A |
| 23 | Bolt Park Brake Control Mounting MB x 1.25 x 20 | 02013A |
| 24 | Lock Washer 8mm | 02014A |
| 25 | Control Assembly Park Brake Handle | 01420A |
| 25 | Control
Assembly Park Brake Handle From #9170 |
01420B |
| 25A | Grip Park Brake Control | 01421A |
| 26 | Boot Park Brake Control | 01422A |
| 27 | Screw Boot Retainer Plate M4.2 x 13 Metal Coarse | 01423A |
| 28 | Retainer Plate Park Brake Lover Boot | 01424A |
| 29 | Trim Cover Park Brake Control Steel w/trim | 25020A |
| 29 | Trim
Cover Park Brake Control Plastic '73-74 Console |
25020B |
| 29 | Trim Cover GT5 w/Control on Left Side of Console | 25020C |
| 30 | Switch Park Brake Warning 2 Terminal | 01426A |
| 30 | Switch Park Brake Warning 3 Terminal | 01426B |
| 31 | Pin Park Brake Cable End GT5 | 01427A |
| 32 | Bracket Park Brake Cable Mounting RH GT5 | 01428A |
| 32 | Bracket Park Brake Cable Mounting LH GT5 | 01428B |
| Ordering
Instructions: Simply pick up the telephone and call us at 714-744-1398 (M-F 9-5 PST) or email us. We will provide you with pricing and availability information. Thank you for choosing PI Motorsports, Inc. |
