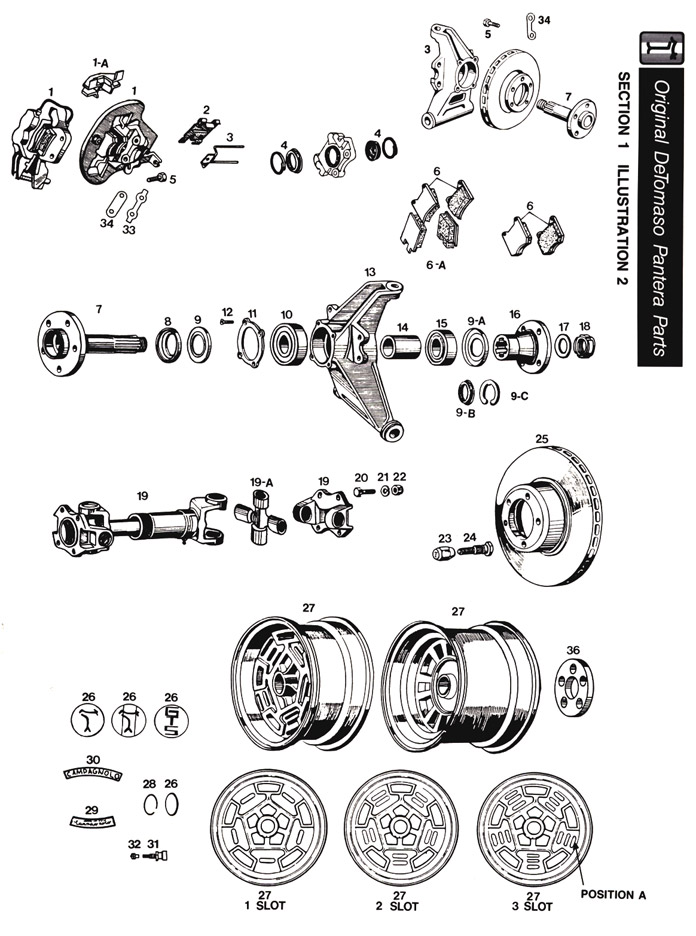

| Illustration Number |
Description |
Part Number |
| 1A | Caliper Guide (Nylon) | 01006D |
| 1 | Caliper Assembly RH Single Piston | 01006C |
| 1 | Caliper Assembly RH 3 Piston GT5 | 01006E |
| 1 | Caliper Assembly LH Single Piston | 01007C |
| 1 | Caliper Assembly LH 3 Piston GT5 | 01007D |
| 2 | Spring Clip Brake Pad Anti-Rattle | 01002B |
| 3 | Retainer Rear Brake Lining | 010048A |
| 3 | Retainer Pin GT5 Rear Pads | 01048B |
| 4 | Caliper Rebuild Kit w/o Piston Single Piston | 01001C |
| 4 | Caliper Rebuild Kit w/o Piston GT5 | 01001D |
| 4 | Caliper Rebuild Kit w/Piston RH Single Piston | 01001E |
| 4 | Caliper Rebuild Kit w/Piston LH Single Piston | 01001F |
| 5 | Bolt Caliper to Upright M10 x 1.5 x 35m | 01005E |
| 5 | Bolt Caliper to Upright GT5 Allenhead M12 x 1.25 x 35 | 01005B |
| 6 | Brake Pad Set Single Piston | 01014C |
| 6 | Brake Pad Set 3 Piston GT5 | 01014C |
| 6A | Brake Pad Set Park Brake GT5 | 01014E |
| 7 | Rear Axle Shaft RH Stamped "D" | 01200A |
| 7 | Rear Axle Shaft RH GT5 | 01014E |
| 7 | Rear Axle Shaft LH Stamped "S" | 01201A |
| 7 | Rear Axle Shaft LH GT5 | 01201B |
| 8 | Spacer Axle Shaft Outer | 01202A |
| 8 | Spacer Axle Shaft Outer GT5 | 01202B |
| 9 | Shield Outer Bearing | 01203A |
| 9A | Shield Inner Bearing | 01203B |
| 9B | Shield (Seal Inner Bearing GT5) | 01203C |
| 9C | Snap Ring GT5 Hub Carrier (Inner Bearing) | 01203D |
| 10 | Bearing Assembly Outer | 01204A |
| 10 | Bearing Assembly Outer GT5 | 01204B |
| 11 | Retainer Wheel Bearing Outer | 01205A |
| 11 | Retainer Wheel Bearing Outer GT5 | 01205B |
| 12 | Screw Retainer to Hub M6 x 16 | 01206A |
| 13 | Hub Carrier | 01207A |
| 13 | Hub Carrier GT5 RH | 01207B |
| 13 | Hub Carrier GT5 LH | 01207C |
| 14 | Spacer Rear Axle Shaft Inner | 01208A |
| 14 | Spacer Rear Axle Shaft Inner GT5 | 01208B |
| 15 | Bearing Assembly Inner | 01209A |
| 15 | Bearing Assembly Inner GT5 | 01209A |
| 16 | Flange Rear Axle Shaft Inner | 01210A |
| 17 | Washer Axle Nut | 01211A |
| 18 | Nut RH Axle | 01212A |
| 18 | Nut LH Axle | 01213A |
| 19 | Drive Shaft w/U-Joints | 01214A |
| 19A | U-Joint w/Zerk | 01214B |
| 20 | Bolt Drive Shaft Flange 7/16 x 20 x 1-1/4 | 01215A |
| 21 | Lock Washer M-11 | 01216A |
| 22 | Nut Axle Flange Bolt 7/16 x 20 ELN | 01217A |
| 23 | See Illustration 1 | |
| 24 | See Illustration 1 | |
| 25 | Rotor Rear Non-Vented | 01025D |
| 25 | Rotor Rear Vented | 01025E |
| 25 | Rotor Rear Vented GT5 | 01025F |
| 26 | See Illustration 1 | |
| 27 | Wheel Rear 8' 1 Slot in Position A | 01027E |
| 27 | Wheel Rear 8" 2 Slot in Position A | 01027F |
| 27 | Wheel Rear 8" 3 Slot in Position A | 01027G |
| 27 | Wheel 10" GTS 2 Slot in Position A | 01027H |
| 27 | Wheel 13" GT5 Spoke Type | 01027I |
| 28 | Retainer Wheel Center Emblem | 01028A |
| 29 | Wheel Decal Campagnolo Gold | 01030A |
| 30 | Wheel Decal Campagnolo Black | 01030B |
| 31 | Valve Stem 2/Cap Aluminum | 01029A |
| 32 | Cap Valve Stem (Knurled) | 01029B |
| 33 | Retainer Rear Caliper Lock Tab` | 01004C |
| 33 | Retainer Rear Caliper Lock Tab GT5 | 01004D |
| 34 | Spacer Rear Caliper to Support | 01003D |
| 34 | Spacer Rear Caliper to Support GT5 0.5mm | 01003E |
| 34 | Spacer Rear Caliper to Support GT5 1.0mm | 01003F |
| 34 | Spacer Rear Caliper to Support GT5 5mm | 01003G |
