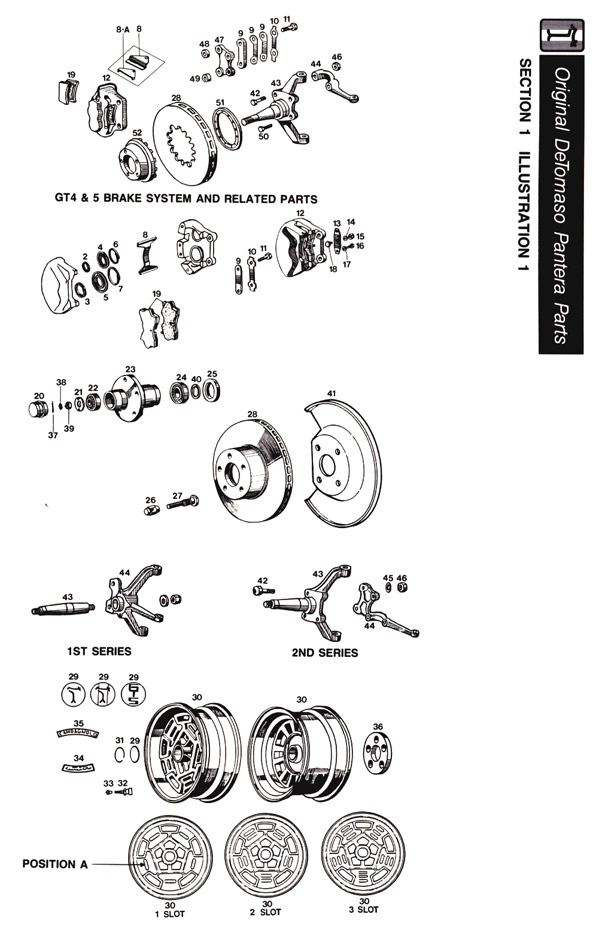

Section 1 Illustration 1
|
Illustration |
Part Description |
Part Number |
|
2-7 |
Caliper Rebuild Kit 1971 - Stock Brakes 4 Piston Caliper |
01001A |
|
2-7 |
Caliper Rebuild Kit GT5 Brakes 3 Piston Caliper |
01001B |
|
8 |
Spring Brake Pad Anti-Rattle |
01002A |
|
8 |
Spring Brake Pad Anti-Rattle GT5 |
01002B |
|
8A |
Retainer Front Brake Pads GT5 |
01047A |
|
9 |
Spacer Shim Caliper to Spindle |
01003A |
|
9 |
Spacer Shim Caliper to Spindle GT5 0.5mm |
01003B |
|
9 |
Spacer Shim Caliper to Spindle GT5 1mm |
01003C |
|
9 |
Spacer Caliper Holder to Caliper GT5 |
1042AC |
|
10 |
Retainer Front Caliper Lock Tab |
01004A |
|
10 |
Retainer Front Caliper Lock Tab GT5 |
01004B |
|
11 |
Bolt (Caliper to Spindle) M12 x 1.25 x 35 |
01005A |
|
11 |
Bolt Caliper to Bracket GT5 7/16-20 x 1 5/8 |
01005B |
|
12 |
Caliper Assembly 4 Piston Front RH |
01006A |
|
12 |
Caliper Assembly 4 Piston Front LH |
01007A |
|
12 |
Caliper Assembly RH GT5 3 Piston |
01006B |
|
12 |
Caliper Assembly LH GT5 3 Piston |
01007B |
|
13 |
Bracket Brake Line Attaching |
01008A |
|
14 |
Washer - M8 |
01009A |
|
15 |
Nut - M8 x 1.25 ELN |
01010A |
|
16 |
Bolt - M6 x 1.0 x 10 |
01011A |
|
17 |
Washer - M6 Lock Washer |
01012A |
|
18 |
Bolt - M8 x 1.25 x 15 |
01013A |
|
19 |
Brake Pad Set 4 Pieces |
01014A |
|
19 |
Brake Pad Set 4 Pieces GT5 |
01014B |
|
20 |
Cap Front Hub Dust |
01015A |
|
21 |
Washer Spindle Nut |
01016A |
|
22 |
Bearing Outer Cone and Roller 01035A |
01017A |
|
22 |
Bearing Outer Race |
01018A |
|
23 |
Hub Front Wheel |
01019A |
|
24 |
Bearing Inner Cone and Roller |
01020A |
|
24 |
Bearing Inner Race |
01021A |
|
25 |
Seal Front Hub Grease |
01022A |
|
26 |
Lug Nut Chrome |
01023A |
|
26 |
Lug Nut w/Factory Isis logo |
01023B |
|
26 |
Lug Nut Black |
01023C |
|
27 |
Stud Front and Rear 2-7/32" Length |
01024A |
|
27 |
Stud Front and Rear GT5 2-13/16" Length |
01024B |
|
28 |
Rotor Front (Nonvented) |
01025A |
|
28 |
Rotor Front (Vented) |
01025B |
|
28 |
Rotor Front Vented GT5 |
01025C |
|
29 |
Wheel Center Emblem Blue with White Crest |
01026A |
|
29 |
Wheel Center Emblem GTS Black |
01026B |
|
29 |
Wheel Center Emblem Black Plastic with Raised T |
01026C |
|
30 |
Wheel Front 7" w/1 Slot in Position A |
01027A |
|
30 |
Wheel Front 7" w/2 Slot in Position A |
01027B |
|
30 |
Wheel Front 7" w/3 Slot in Position A |
01027C |
|
30 |
Wheel Front 10"GT4 and 5 Spoke Type |
01027D |
|
31 |
Retainer Wheel Center Emblem |
01028A |
|
32 |
Valve Stem w/Cap Aluminum |
01029A |
|
33 |
Cap Valve Stem Knurled |
01029B |
|
34 |
Wheel Decal Campagnolo Gold |
01030A |
|
35 |
Wheel Decal Campagnolo Black |
01030B |
|
36 |
Spacer Front & Rear Wheel GT4 and 5 |
01031A |
|
37 |
Cotter Pin 1/8" x 1-1/2" |
01032A |
|
38 |
Nut Micro Lock |
01033A |
|
39 |
Spindle Nut RH Crimp Style |
01034A |
|
39 |
Spindle Nut LH Crimp Style |
01034B |
|
39 |
Spindle Nut RH Used w/#37 & 38 |
01034C |
|
39 |
Spindle Nut LH Used w/#37 & 38 |
01034D |
|
40 |
Shield Wheel Bearing Inner |
01035A |
|
41 |
Shield Front Brake Splash |
01036A |
|
42 |
Bolt Front Spindle Arm - No Hex Head M10 x 1.0 x 50 |
01037A |
|
42 |
Bolt Front Spindle Arm - w/ Hex Head M10 x 1.5 x 50 |
01037B |
|
42 |
Bolt Spindle Arm to Spindle GT5 Allen Head M12 x 1.25 x 50 |
01005C |
|
43 |
Spindle Shaft RH R/B 2nd Series |
01038A |
|
43 |
Spindle Shaft LH R/B 2nd Series |
01038B |
|
43 |
Spindle R&LH 2nd Series Drilled |
01038C |
|
43 |
Spindle GT5 R&LH |
01038D |
|
44 |
Support Spindle RH R/B 2nd Series |
01039A |
|
44 |
Support Spindle LH R/B 2nd Series |
01039B |
|
44 |
Spindle Arm RH |
01039C |
|
44 |
Spindle Arm LH |
01039D |
|
44 |
Spindle Arm RH GTS |
01039E |
|
45 |
Washer (Spring Type 10mm) |
01040A |
|
46 |
Nut Spindle Arm M10 x 1.0 For 01037A |
01041A |
|
46 |
Nut Spindle Arm Bolt M10 x 1.5 ELN for 01037B |
01041B |
|
46 |
Nut Spindle Arm Bolt GT5 M12 x 1.25 ELN |
01041C |
|
47 |
Caliper Holder GT5 |
01043A |
|
48 |
Spacer Caliper Holder to Spindle GT5 9/32" |
01044A |
|
49 |
Spacer Caliper Holder to Spindle GT5 1/2" |
01044B |
| 50 | Bolt Caliper older to GT5 Hex Head M12 x 1.25 x 50 | 01005D |
| 51 | Retainer Ring Rotor to Housing GT5 | 01045A |
| 52 | Housing Front Rotor GT5 | 01046A |
| Ordering Instructions: Simply pick up the telephone and call us at 714-744-1398 (M-F 9-5 PST) or email us. We will provide you with pricing and availability information. Thank you for choosing PI Motorsports, Inc. |
